Coriollis Component Of Acceleration
Product Code : EL-TOML-11027

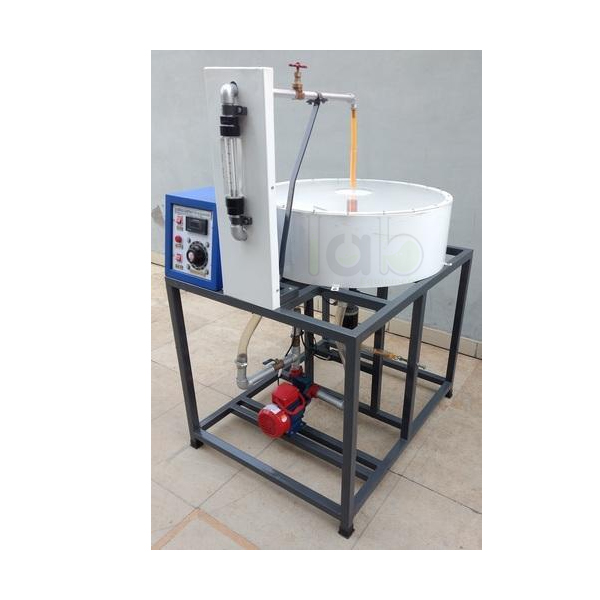

Quick Answer: Coriollis Component Of Acceleration is a set-up for studying the Coriolis component of acceleration of a slider crank mechanism, using water flowing through rotating tubes as a hydraulic analogy of the rotating slider. A 0.5 HP swinging field D.C. motor turns the tubes and also measures the applied torque.
Last updated: October 2026
Key Features
- Rotating block with two arms in opposite directions, 9/6 mm dia and 300 mm long
- Swinging field D.C. motor, 0.5 HP, which also acts as a dynamometer
- Rotameter for measuring the water flow rate through the tubes
- Monoblock pump circulating water from a main tank with fiberglass lining
- Perspex window in the cover for watching the process
- Control panel with speed control unit, speed indicator and switches
Technical Specifications
| Specification | Value |
|---|---|
| Main tank | With fiberglass lining |
| Rotating arms | 9/6 mm dia, 300 mm long |
| Motor | Swinging field, D.C., 0.5 HP |
| Flow measurement | Rotameter |
| Water circulation | Monoblock pump |
| Control panel | Speed control unit, speed indicator, switches |
| Supply | A.C. single phase, 230 V, stabilised |
| Floor space | 1.5 m x 1.5 m |
About This Product
Water is pumped through the tubes of a rotating block while both the speed of rotation and the water flow rate are varied, so the Coriolis component of acceleration can be determined for each condition. The Perspex window lets students watch the process, and the rotameter reads the flow rate. In the THEORY OF MACHINE LAB, this hydraulic analogy represents the rotating slider of a slider crank mechanism.
Frequently Asked Questions
Q1. How is torque measured on this set-up?
The swinging field D.C. motor that rotates the tubes also acts as a dynamometer, measuring the torque applied to the rotating tubes.
Q2. What can be varied during the experiment?
Both the speed of rotation and the water flow rate. The Coriolis component of acceleration is determined at different speeds and flow rates.
Q3. What services does the set-up need?
An A.C. single phase 230 V stabilised supply and a floor space of 1.5 m x 1.5 m.
Questions about the Coriollis Component Of Acceleration? Write to Lab Equipments Ambala.
