Epicyclic Gear Train Holding Torque Apparatus
Product Code : EL-TOML-11029

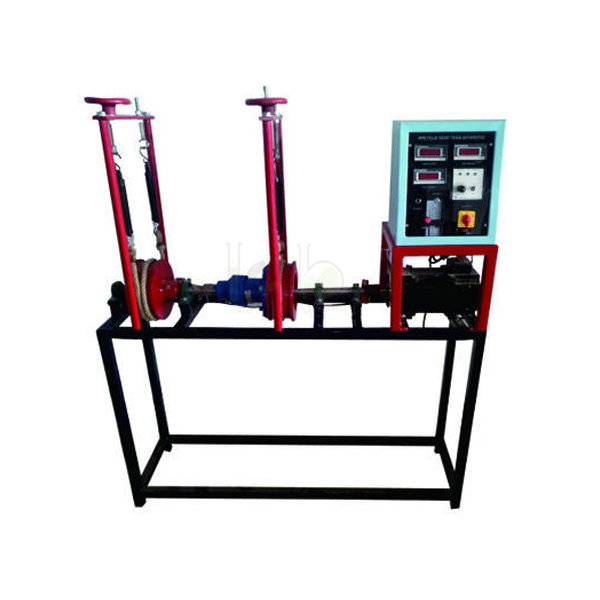

Quick Answer: Epicyclic Gear Train Holding Torque Apparatus is a motor-driven unit for measuring epicyclic gear ratios and the input, holding and output torques of a sun-and-planet gear train. It has an external type gear train with holding drum and an internal type gear train driven by a variable speed D.C. motor with rope brake loading.
Last updated: October 2026
Key Features
- External type epicyclic gear train with bearing blocks for input and output shafts and a holding drum with handle
- Internal type compact gear train driven by a variable speed D.C. motor
- Rope brake arrangement to measure output torque and holding torque
- Sun gear on the input shaft; planet gears on a common arm carrying the output shaft
- Control panel with digital ammeter and voltmeter, RPM indicator and speed controller
Technical Specifications
| Specification | Value |
|---|---|
| External type gear train | Bearing blocks for input and output shafts; gear train with holding drum and handle |
| Internal type gear train | Compact gear train; variable speed D.C. motor; rope brake for output and holding torque |
| Control panel | Digital ammeter and voltmeter, RPM indicator, speed controller |
| Floor space | About 1.5 m x 2 m |
| Supply | 230 V A.C. stabilised |
About This Product
The sun gear sits on the input shaft, and two planet gears meshing with the annular gear are carried on a common arm fitted to the output shaft. Loading the system lets students measure the gear ratio between the input and output shafts and between the input shaft and the holding drum, along with input, holding and output torque. Among engineering educational equipments in India for gear-train studies, this THEORY OF MACHINE LAB apparatus pairs an external type and an internal type epicyclic train.
Frequently Asked Questions
Q1. What can be measured with this apparatus?
The epicyclic gear ratio between the input and output shafts, the gear ratio between the input shaft and the holding drum, and the input, holding and output torques.
Q2. How is holding torque measured?
A loading arrangement loads the system, and the rope brake arrangement measures both the output torque and the holding torque.
To order the Epicyclic Gear Train Holding Torque Apparatus or ask a question about it, send an enquiry to Lab Equipments Ambala.
