Quick Answer: Milling Tool Dynamometers measure the cutting forces of a milling operation in three directions at once, using octagonal rings with strain gauges and a three channel digital force indicator. The range of force measurement is 0 to 500 kg in each coordinate direction.
Last updated: October 2026
Key Features
Mechanical sensing unit with a set of octagonal rings and strain gauges
Rings sandwiched between two M.S. plates; mechanical unit 300 x 300 mm
Three channel digital force indicator with balancing potentiometers and polycarbonate front plate
Force range 0 to 500 kg in each coordinate direction
Rigid, compact construction
Technical Specifications
Specification
Value
Sensing unit
Octagonal rings with strain gauges
Force indicator
Three channel digital, balancing potentiometers, polycarbonate front plate
Force range
0 to 500 kg in coordinate direction
Mechanical unit size
300 x 300 mm
Machine required
Milling machine with automatic feed arrangement and tooling
Supply
230 V, single phase, 50 Hz, stabilised
About This Product

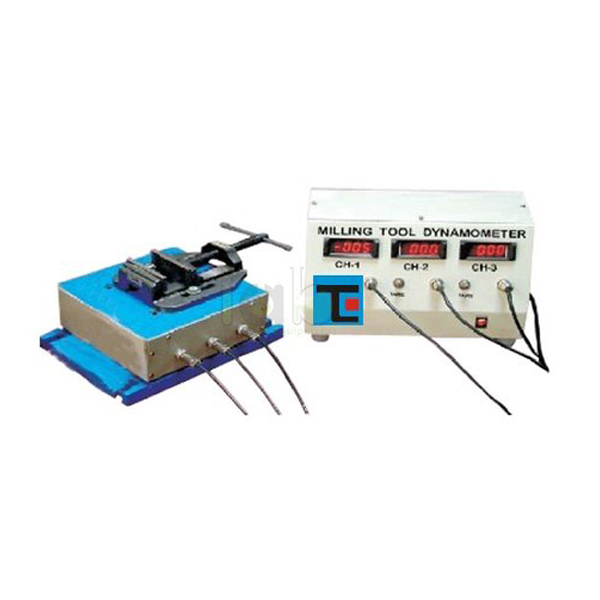

Set up on a milling machine with automatic feed, the sensing unit passes force data from its octagonal rings to the indicator, which shows all three cutting forces simultaneously. Students vary depth of cut, material, speed and feed to see how each one changes the forces. The standard octagonal ring method with strain gauges makes this one of the engineering educational equipments in India suited to measuring milling forces in the THEORY OF MACHINE LAB.
Frequently Asked Questions
Q1. How many forces does it measure at once? Three. The three channel digital force indicator shows the cutting forces in three directions simultaneously, each over a range of 0 to 500 kg.
Q2. What machine is needed to use it? A milling machine with an automatic feed arrangement and tooling, plus a 230 V, single phase, 50 Hz stabilised power supply.
