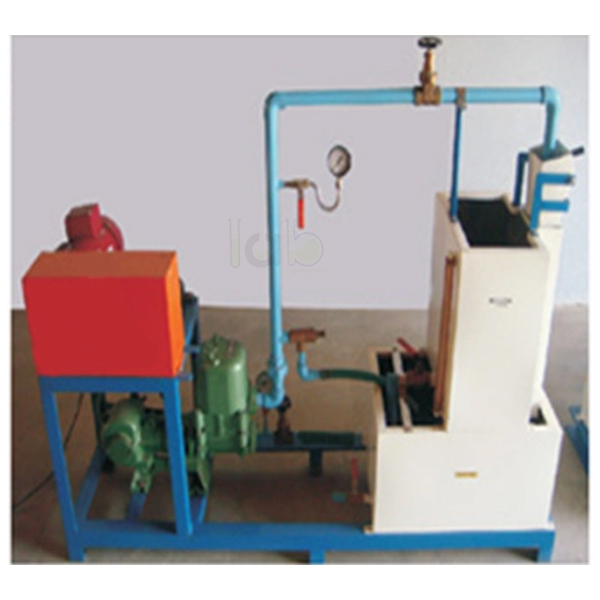

Reciprocating Pump Test Setup
Product Code : EL-HML-11055
Quick Answer: Reciprocating Pump Test Setup studies a double acting, single cylinder pump of 1 HP capacity, rated up to 250 RPM and 5 Kg/cm2 head, in a closed water loop. Discharge is measured with a 50 Ltrs. measuring tank and an electronic stop watch.
Last updated: October 2026
Key Features
- Double acting, single cylinder reciprocating pump, 1 HP
- AC motor with step cone pulley for 3 prefixed speeds, or DC motor with DC drive and non-contact digital RPM indicator
- Pressure and vacuum gauges on the outlet and suction side of the pump
- 70 Ltrs. supply tank and 50 Ltrs. measuring tank with piezometer tube and scale
- Stainless steel tanks and wetted parts
Technical Specifications
| Specification | Value |
|---|---|
| Pump | Double acting, single cylinder, 1 HP |
| Speed | 250 RPM (max.) |
| Head | 5 Kg/cm2 (max.) |
| Drive | AC motor with step cone pulley for 3 prefixed speeds, or DC motor with DC drive and non-contact type digital RPM indicator |
| Supply tank | 70 Ltrs. |
| Measuring tank | 50 Ltrs., with piezometer tube and scale |
| Piping | GI / PVC |
| Stop watch | Electronic |
| Electric supply | 230 +/- 10 VAC, 50 Hz, single phase, with earthing; 5 A three pin socket |
| Water supply | Tap water connection ½” BSP; distilled water 80 Ltrs. optional |
About This Product
With this setup, the overall efficiency and pump efficiency of a reciprocating pump are determined, and head and pump efficiency are plotted against discharge. Water runs in a closed loop from the supply tank through the pump to the measuring tank, where the discharge is timed. The HYDRAULIC MACHINE LAB version can be driven either by an AC motor with a step cone pulley or by a DC motor and drive with a non-contact RPM indicator.
Frequently Asked Questions
Q1. What drive options are available for the reciprocating pump?
An AC motor with a step cone pulley arrangement for 3 prefixed speeds, or a DC motor with DC drive and a non-contact type digital RPM indicator.
Q2. What type of reciprocating pump is fitted?
A double acting, single cylinder pump of 1 HP capacity, with a maximum speed of 250 RPM and a maximum head of 5 Kg/cm2.
To order the Reciprocating Pump Test Setup or ask a question about it, send an enquiry to Lab Equipments Ambala.
