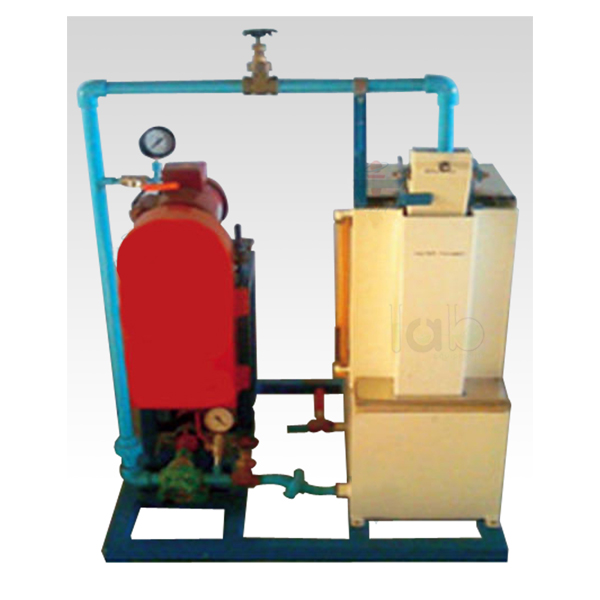

Gear Pump Test Setup
Product Code : EL-HML-11056
Quick Answer: Gear Pump Test Setup tests a pump with a pair of meshed gears, 1 HP capacity, rated up to 1500 RPM and 5 Kg/cm2 head. It has a 30 Ltrs. supply tank, a 20 Ltrs. measuring tank with piezometer tube and scale, and pressure and vacuum gauges on both sides of the pump.
Last updated: October 2026
Key Features
- Gear pump with a pair of meshed gears, 1 HP
- AC motor with step cone pulley for 3 prefixed speeds; DC motor with DC drive and non-contact digital RPM indicator also listed
- Pressure and vacuum gauges on the outlet and suction side of the pump
- Stainless steel tanks and wetted parts, GI / PVC piping
- Electronic stop watch for timing the discharge
Technical Specifications
| Specification | Value |
|---|---|
| Pump | Gear pump with pair of meshed gears, 1 HP |
| Speed | 1500 RPM (max.) |
| Head | 5 Kg/cm2 (max.) |
| Drive | AC motor with step cone pulley for 3 prefixed speeds; DC motor with DC drive and non-contact type digital RPM indicator |
| Supply tank | 30 Ltrs. |
| Measuring tank | 20 Ltrs., with piezometer tube and scale |
| Piping | GI / PVC |
| Stop watch | Electronic |
| Electric supply | 230 +/- 10 VAC, 50 Hz, single phase, with earthing; 5 A three pin socket |
| Oil supply | Oil 30 Ltrs. optional |
About This Product
The rig is used to determine the overall efficiency and pump efficiency of a gear pump and to plot head and pump efficiency against discharge. In this HYDRAULIC MACHINE LAB setup the pump, motor, supply tank and measuring tank are joined by pipe fittings into a closed loop, and the discharge is read from the measuring tank against the stop watch.
Frequently Asked Questions
Q1. What drive arrangements are listed for the gear pump?
An AC motor with a step cone pulley arrangement for 3 prefixed speeds, and a DC motor with DC drive and a non-contact type digital RPM indicator.
Q2. Which experiments does the gear pump setup support?
Determining the overall efficiency and pump efficiency of the gear pump, and plotting head vs discharge and pump efficiency vs discharge.
