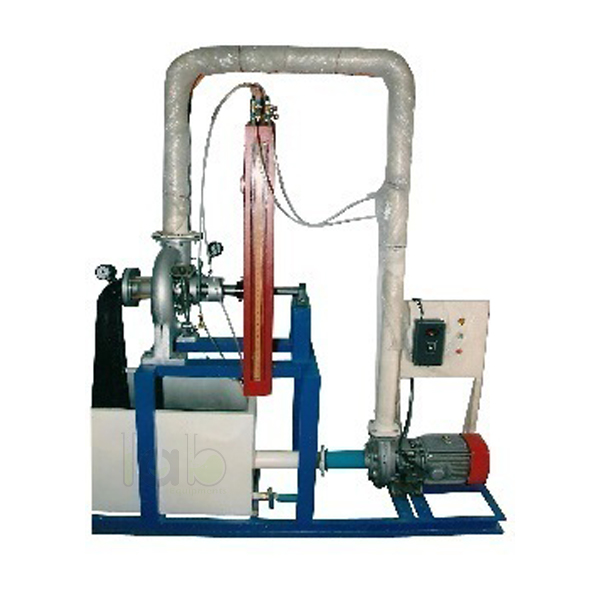

Francis Turbine Test Setup
Product Code : EL-HML-11051
Quick Answer: Francis Turbine Test Setup is a mixed flow reaction turbine rig in which water enters the runner radially and leaves axially, with a brake arrangement for calculating turbine efficiency. It comes in 1.33 HP, 2 HP and 5 HP versions with a curved-vane runner, guide mechanism, draught tube and rope brake dynamometer.
Last updated: October 2026
Key Features
- Runner with curved vanes on an SS shaft, supported by a thick cast iron pedestal
- Water fed radially to the runner by a centrifugal pump
- Guide mechanism, with a draught tube at the outlet
- Pressure and vacuum gauges at inlet and outlet for the total supply head
- Transparent acrylic window in the casing for watching flow onto the runner
- Control panel with star/delta starter, mains indicator and MCB for overload protection
Technical Specifications
| Specification | 1.33 HP version | 2 HP version | 5 HP version |
|---|---|---|---|
| Output power | 1.33 HP / 1 kW | 2 HP / 1 kW | 5 HP / 3.75 kW |
| Discharge | 1000 LPM (approx.) | 1000 LPM (approx.) | 2000 LPM (approx.) |
| Supply head | 10 m | 10 m | 15 m |
| Rope brake dynamometer | Dia 200 mm | Dia 200 mm | Dia 300 mm |
| Sump tank | 300 litres | 300 litres | 600 litres |
| Circulation pump | 5 HP, three phase | 5 HP, three phase | 15 HP, three phase |
| Speed | 1500 RPM (approx.) | 1500 RPM (approx.) | 1500 RPM (approx.) |
| Runner | Curved vanes | Curved vanes | Curved vanes |
| Discharge measurement | Pitot tube with manometer | Pitot tube with manometer | Pitot tube with manometer |
| Electricity | 15 kW, 440 V AC, three phase | 15 kW, 440 V AC, three phase | 15 kW, 440 V AC, three phase |
About This Product
The runner sits in an air-tight casing that is always full of water, and part of the pressure energy changes into kinetic energy as water passes through, so the flow through the runner stays under pressure. Students apply load with the brake arrangement and read the inlet and outlet gauges to calculate efficiency, an exercise on reaction turbines in the HYDRAULIC MACHINE LAB.
Frequently Asked Questions
Q1. Why is it called a mixed flow turbine?
Water enters the runner through its outer periphery in the radial direction and leaves the runner in the axial direction.
Q2. How is the total head on the turbine measured?
Pressure and vacuum gauges fitted at the inlet and outlet of the turbine measure the total supply head.
