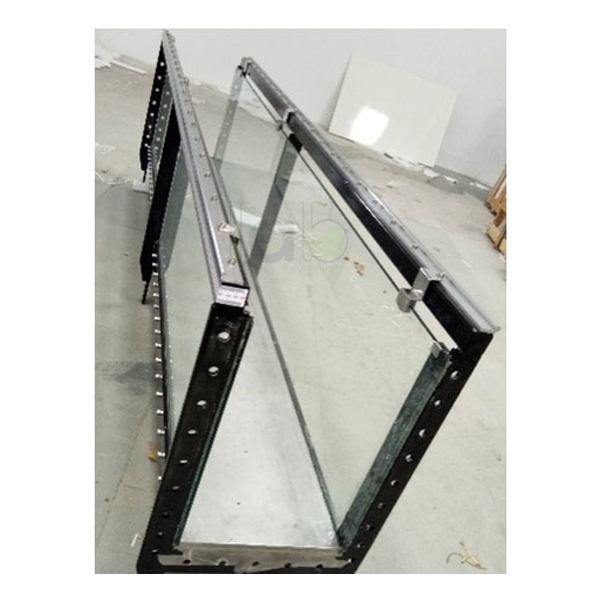

Quick Answer: Extension Element Of The Experimental Flume adds 2.5 m to the experimental section of the flume, giving a maximum length of 5 m. It has an 86 x 300 mm flow cross-section, tempered glass side walls and 10 evenly spaced threaded holes in the bottom.
Last updated: October 2026
Key Features
Extends the experimental section by 2.5 m, up to 5 m
Tempered glass side walls for observing the experiments
10 evenly spaced threaded holes for installing models or water level measurement using pressure
Flow cross-section 86 x 300 mm
Technical Specifications
Specification
Value
Flow cross-section (W x H)
86 x 300 mm
Length
2.5 m
Maximum flume length
5 m
Weight
Approx. 12 Kg
About This Product
Fitting this element lengthens the experimental section of the EXPERIMENTAL FLUME FLOW CHANNEL APPARATUS stepwise by 2.5 m, to a maximum of 5 m. Models can be installed through the threaded holes in its bottom, which also serve for water level measurement using pressure, and the glass side walls keep the added length visible.
Frequently Asked Questions
Q1. How long is the flume with the extension element? The element adds 2.5 m to the experimental section, giving a maximum length of 5 m.
Q2. Can models be mounted on the extension element? Yes. It has ten evenly spaced threaded holes in the bottom for installing models or for water level measurement using pressure.
