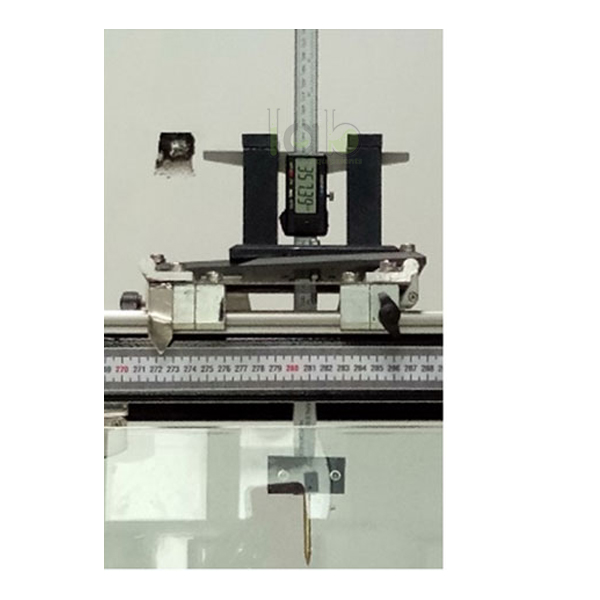

Digital Level Gauge
Product Code : EL-EFFCA-11075
Quick Answer: Digital Level Gauge measures discharge depth in the experimental flume with a vertically travelling probe tip or hook, over a 0…300 mm range. Depth is read on a scale and on a digital display, and the gauge uses corrosion-resistant materials.
Last updated: October 2026
Key Features
- Measurement with probe tip or hook
- Vertically travelling, max. travel 300 mm
- Scale and digital display for the discharge depth
- Corrosion-resistant materials
- Carrier fixes at any position on the experimental section
Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 0…300 mm |
| Graduation | 0.01 mm |
| Max. travel | 300 mm |
| Dimension (L x W x H) | 150 x 120 x 380 mm |
| Weight | Approx. 2 kg |
About This Product
The probe tip is shaped so that it is easy to see when it touches the water surface; with the hook, depth is taken as its tip breaks through the surface from below. Mounted on a carrier that fixes anywhere on the experimental section, the gauge serves as a depth-measuring accessory for EXPERIMENTAL FLUME FLOW CHANNEL APPARATUS experiments.
Frequently Asked Questions
Q1. What is the difference between the probe tip and the hook?
The probe tip is lowered until it visibly touches the water surface. With the hook, the tip breaks through the water surface from below to measure the discharge depth.
Q2. What range does the level gauge measure?
0…300 mm, with a maximum travel of 300 mm and a graduation of 0.01 mm.
