Radial Gate
Product Code : EL-EFFCA-11063

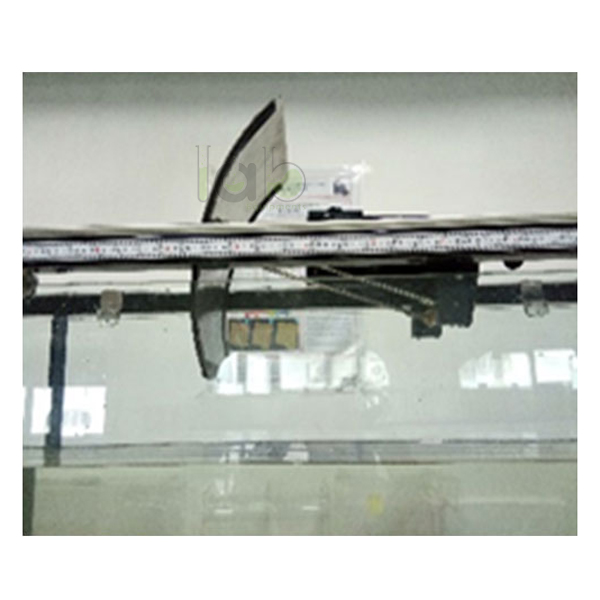

Quick Answer: Radial Gate is a movable control structure for the experimental flume whose core element is a wall shaped as a segment of a circle, radius 298 mm. Water flows under the gate, which has a stainless steel plate 80 mm wide, lateral sealing lips and lever height adjustment.
Last updated: October 2026
Key Features
- Gate plate in stainless steel, width 80 mm
- Lateral sealing lips
- Height adjustment using a lever
- Free and submerged discharge experiments
- Observation of vena contracta and downstream hydraulic jumps
Technical Specifications
| Specification | Value |
|---|---|
| Plate material | Stainless steel |
| Plate width | 80 mm |
| Radius of the segment | 298 mm |
| Weight | Approx. 3 kg |
| Dimension (L x W x H) | 310 x 160 x 460 mm |
About This Product
Placed in the flume, the gate causes backwater, and the discharge in the open channel can be adjusted and controlled by raising or lowering it with the lever. Radial gates are often combined with a fixed control structure such as a broad-crested weir, a pairing typical of barrages. With this EXPERIMENTAL FLUME FLOW CHANNEL APPARATUS accessory, students observe free and submerged discharge, jet contraction and hydraulic jumps.
Frequently Asked Questions
Q1. What is the shape of the radial gate?
Its core element is a wall shaped as a segment of a circle with a radius of 298 mm.
Q2. How is the gate height adjusted?
Height is adjusted using a lever. The gate also has lateral sealing lips.
Lab Equipments Ambala exports to 80+ countries, including South Korea, Saint Vincent and the Grenadines, the United Arab Emirates and Mali.
To order the Radial Gate or ask a question about it, send an enquiry to Lab Equipments Ambala.
