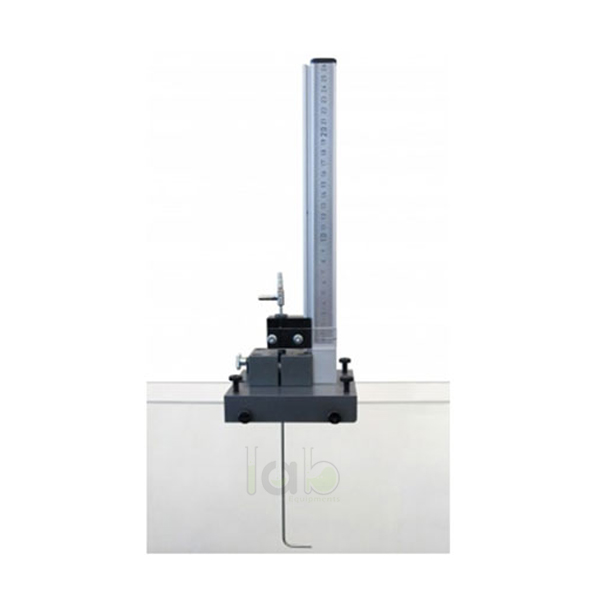

Pitot Static Tube
Product Code : EL-EFFCA-11071
Quick Answer: Pitot Static Tube measures the flow velocity at any point in the experimental flume from the static and total pressure, shown on twin tube manometers. A vertical scale of 0…240 mm with 1 mm graduation indicates the position of the tube.
Last updated: October 2026
Key Features
- Measures static and total pressure at any point of the flow
- Twin tube manometers, connected by hoses, indicate both pressures
- Tube moves vertically; holder with vertical scale shows its position
- Carrier can be placed and fixed at any position on the experimental section
Technical Specifications
| Specification | Value |
|---|---|
| Scale (vertical position) | 0…240 mm |
| Graduation | 1 mm |
| Pressure measuring range | 2 x 0…350 mm WS |
| Dimension (L x W x H) | 250 x 180 x 510 mm |
| Weight | Approx. 3 kg |
About This Product
The pressure difference between the two manometer readings equals the dynamic pressure, from which the flow velocity is calculated. Because the carrier fixes anywhere along the experimental section and the tube travels vertically, students can measure velocity at different positions and depths in the EXPERIMENTAL FLUME FLOW CHANNEL APPARATUS.
Frequently Asked Questions
Q1. How is flow velocity obtained with the Pitot static tube?
The tube measures static and total pressure; their difference is the dynamic pressure, from which the flow velocity can be calculated.
Q2. What is the pressure measuring range?
The twin tube manometers measure 2 x 0…350 mm WS.
