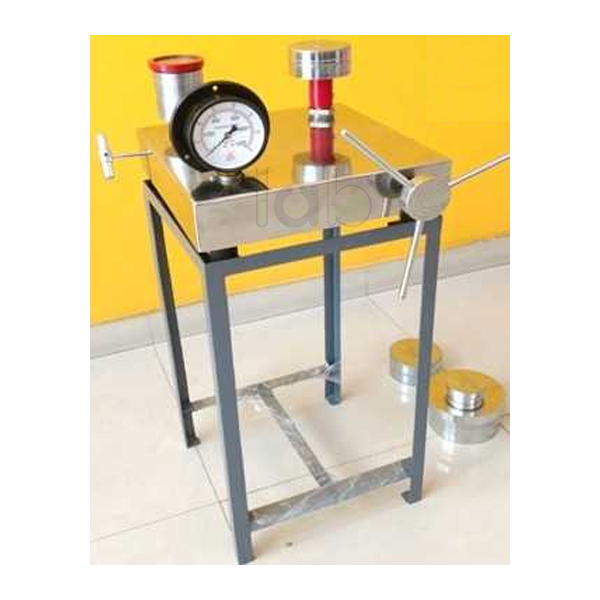

Dead Weight Pressure Gauge Tester
Product Code : EL-TOML-11031
Quick Answer: Dead Weight Pressure Gauge Tester is a hydraulic tester for pressure gauges up to a capacity of 25 kg/cm², using a Bourdon tube pressure gauge as manometer and a set of iron weights on a base plate.
Last updated: October 2026
Key Features
- Tests pressure gauges up to 25 kg/cm²
- Bourdon tube pressure gauge as manometer, with transparent scale
- Hydraulic medium for transmitting pressure; machine oil required
- Set of iron weights for long-term use
- Corrosion resistant materials with a nickled chrome finish against rust
- Components arranged on a base plate
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | Up to 25 kg/cm² |
| Gauge | Bourdon tube pressure gauge as manometer, transparent scale |
| Pressure medium | Hydraulic |
| Weights | Set of weights, iron |
| Finish | Nickled chrome |
| Utilities | Machine oil |
About This Product
Pressure is transmitted through a hydraulic medium, with machine oil as the only utility, and a Bourdon tube pressure gauge with a transparent scale serves as the manometer. The components are arranged on a base plate and made from corrosion resistant materials, with a nickled chrome finish against rust. Gauges up to 25 kg/cm² can be tested with this THEORY OF MACHINE LAB instrument, which uses iron weights intended for long-term use.
Frequently Asked Questions
Q1. What pressure range can it test?
Pressure gauges up to a capacity of 25 kg/cm².
Q2. What fluid does the tester need?
Pressure is transmitted hydraulically, and machine oil is the utility required.
Lab Equipments Ambala supplies institutions and distributors in Samoa, Armenia, Bahrain and the United Kingdom, as part of its export work to 80+ countries.
Questions about the Dead Weight Pressure Gauge Tester? Write to Lab Equipments Ambala.
