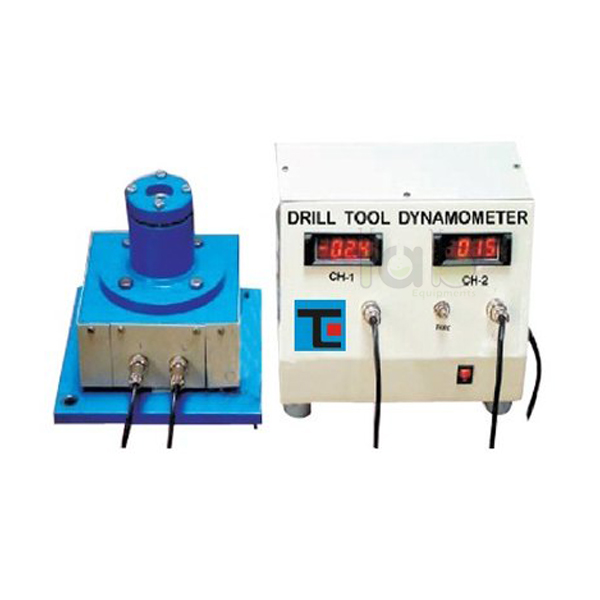

Drilling Tool Dynamometers
Product Code : EL-TOML-11036
Quick Answer: Drilling Tool Dynamometers measure thrust and torque during drilling with an armed wheel type strain gauge sensing unit, suitable for holes up to 25 mm in mild steel. A compact two channel digital force indicator shows both forces simultaneously, with readings directly in kg.
Last updated: October 2026
Key Features
- Armed wheel type strain gauge sensing unit with work piece holder
- Measures thrust and torque during drilling
- Suits holes up to 25 mm in mild steel
- Two channel digital force indicator with balancing potentiometer, switches, fuses and screen printed front plate
- Factory calibrated with a proving ring; readings directly in kg
- Cutting fluid can be used during operation
Technical Specifications
| Specification | Value |
|---|---|
| Type | Armed wheel type strain gauge |
| Measures | Thrust and torque |
| Drilling capacity | Holes up to 25 mm in mild steel |
| Indicator | Two channel digital force indicator |
| Calibration | At factory with proving ring; readings in kg |
About This Product
As the drill cuts, strain gauges on the armed wheel sensing unit pick up thrust and torque, and the two channel indicator displays both together. Varying speed, cut and feed shows students how these forces change during a THEORY OF MACHINE LAB drilling exercise.
Frequently Asked Questions
Q1. What is the largest hole it can be used for?
It is suitable for drilling a hole up to 25 mm in mild steel.
Q2. How is the dynamometer calibrated?
It is calibrated at the factory with the help of a proving ring, and readings are given directly in kg.
Lab Equipments Ambala supplies institutions and distributors in the Dominican Republic, the Comoros, Serbia and Ghana, as part of its export work to 80+ countries.
To order the Drilling Tool Dynamometers or ask a question about it, send an enquiry to Lab Equipments Ambala.
