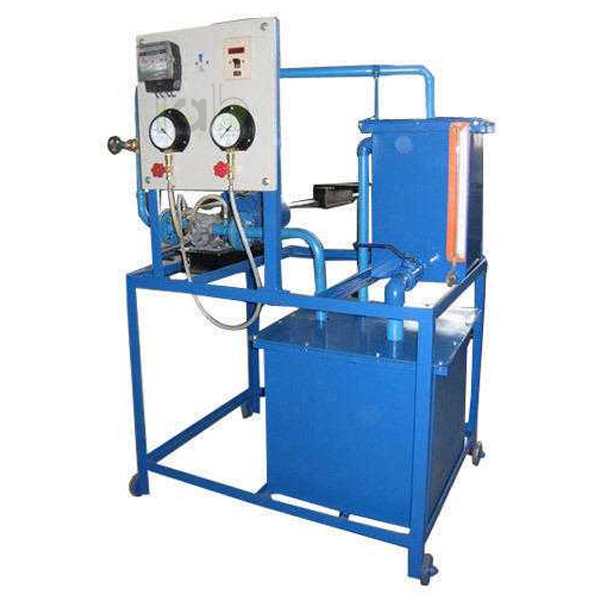

Jet Pump Test Setup
Product Code : EL-HML-11058
Quick Answer: Jet Pump Test Setup is a mono-block jet pump test rig of 1 HP capacity, size 32 mm x 25 mm x 25 mm, for studying jet pump performance with clear water. It has a 70 Ltrs. supply tank, a 50 Ltrs. measuring tank with piezometer tube and scale, and an electronic energy meter on the control panel.
Last updated: October 2026
Key Features
- Mono-block jet pump, 1 HP
- Electronic energy meter in the control panel
- MCB for overload protection, on/off switch and main indicator
- Bourdon type pressure gauge, with pressure and vacuum gauges on both sides of the pump
- Stainless steel tanks and wetted parts, GI / PVC piping
Technical Specifications
| Specification | Value |
|---|---|
| Pump | Mono-block jet pump, 1 HP |
| Size | 32 mm x 25 mm x 25 mm (suction x pressure x delivery) |
| Medium | Clear water |
| Supply tank | 70 Ltrs. |
| Measuring tank | 50 Ltrs., with piezometer tube and scale |
| Piping | GI / PVC |
| Stop watch | Electronic |
| Pressure gauge | Bourdon type |
| Control panel | Electronic energy meter, MCB for overload protection, on/off switch, main indicator |
| Electric supply | 230 +/- 10 VAC, 50 Hz, single phase, with earthing; 5 A three pin socket |
| Water supply | Tap water connection ½” BSP; distilled water 90 Ltrs. optional |
About This Product
Overall efficiency and pump efficiency of a jet pump are worked out on this rig, and head and pump efficiency are plotted against discharge. An energy meter in the control panel measures the energy input, while the gauges on each side of the pump and the timed measuring tank give head and flow. For a HYDRAULIC MACHINE LAB, the mono-block arrangement combines pump and drive in one unit.
Frequently Asked Questions
Q1. How is the energy input of the jet pump measured?
The control panel includes an electronic energy meter, together with an MCB for overload protection, an on/off switch and a main indicator.
Q2. Which experiments can be done on the jet pump rig?
Determining the overall efficiency and pump efficiency of the jet pump, and plotting head vs discharge and pump efficiency vs discharge.
Lab Equipments Ambala packs and ships export orders for buyers in New Zealand, the Democratic Republic of the Congo, Luxembourg and Madagascar.
For a quotation on the Jet Pump Test Setup, contact Lab Equipments Ambala.
