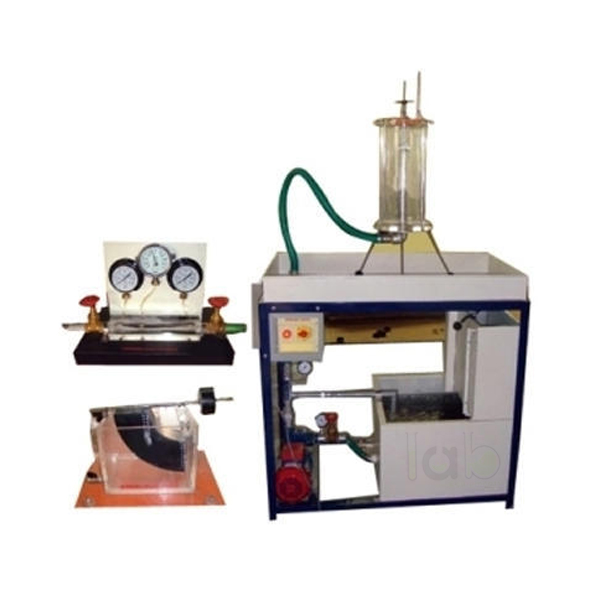

Quick Answer: Hydraulic Bench Apparatus is a self-contained water recirculation unit with a 1060 mm x 650 mm tray, a 1 HP centrifugal pump and a 120 Ltr. SS sump tank. It serves accessory set-ups such as hydrostatic pressure, flow over weirs, Bernoulli’s theorem, impact of jet and orifice discharge.
Last updated: October 2026
Key Features
Self-contained water recirculation with tray, sump tank and measuring tank
Flow control valve and bypass valve for experiments at different flow rates
Measuring tank with separate level indicator and scale, and drain valve back to the sump
Drain valve and overflow on the sump tank
Powder coated painted structure
Technical Specifications
Specification
Value
Tray
1060 mm x 650 mm
Pump
1 HP, centrifugal
Flow measurement
Measuring tank (material SS) and stop watch
Tank capacity
40 Ltr.
Sump tank
120 Ltr., SS
Initial water fill
Approx 250 Ltrs
Electric supply
220 V AC, 50 Hz, single phase
Floor area
1.75 m x 1.50 m
About This Product
The bench supplies and measures water for separate experimental set-ups placed on its tray, including hydrostatic pressure, flow over weirs, Bernoulli’s theorem, flow meter demonstration, impact of jet and orifice discharge. A centrifugal pump circulates water from the sump, and discharge is found by timing the level in the measuring tank before its drain valve empties it back into the sump. Placed in a HYDRAULIC MACHINE LAB, it needs a drain, a 220 V single phase supply and a floor area of 1.75 m x 1.50 m.
Frequently Asked Questions
Q1. Which experiments work with the hydraulic bench? Accessory set-ups for hydrostatic pressure, flow over weirs, Bernoulli’s theorem, flow meter demonstration, impact of jet and orifice discharge.
Q2. How is discharge measured on the bench? With the measuring tank and a stop watch, reading the water level on its separate level indicator and scale. A drain valve then returns the water to the sump tank.
