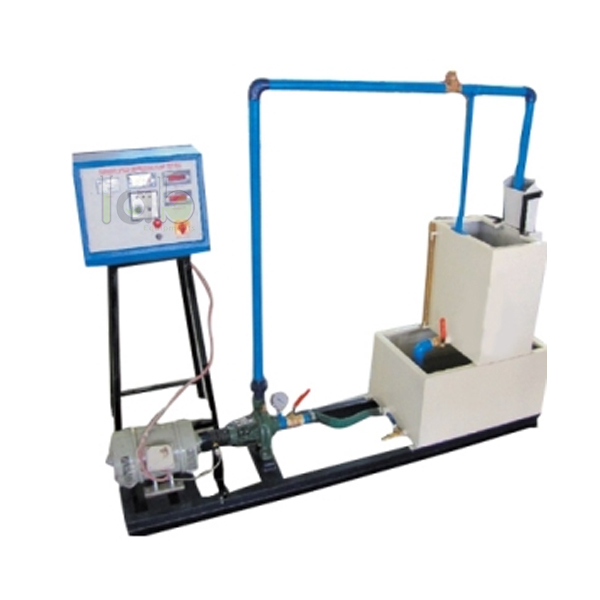

Quick Answer: Centrifugal Pump Test Rig is a closed circuit test rig with a 1 h.p. monoblock centrifugal pump, measuring head with a vacuum gauge on the suction pipe and a pressure gauge on the discharge pipe, discharge with a measuring tank or water flow meter, and input power with an energy meter.
Last updated: October 2026
Key Features
Centrifugal monoblock pump, 1 h.p.
Vacuum gauge on suction pipe and pressure gauge on discharge pipe
Gate valve to adjust the head on the pump
Measuring tank 400 x 400 x 400 mm or water flow meter for discharge
Energy meter for input power; stop watch
S.S. tanks and anticorrosive powder coating
Technical Specifications
Specification
Value
Pump
Centrifugal monoblock, 1 h.p.
Head measurement
Pressure gauge and vacuum gauge
Discharge measurement
Measuring tank 400 x 400 x 400 mm or water flow meter
Input power
Energy meter
Circuit
Closed circuit, S.S. tanks
Finish
Powder coated
Supply
440 V, 15 A, stabilised three phase A.C.
Floor area
2 m x 2 m
About This Product
Adjusting the gate valve changes the head on the pump, while the gauges, the measuring tank or flow meter and the energy meter give head, discharge and input power for each setting. Water circulates in a closed circuit with S.S. tanks, and a tachometer for speed measurement can be added to this HYDRAULIC MACHINE LAB rig.
Frequently Asked Questions
Q1. How is the pump head measured? With a vacuum gauge on the suction pipe and a pressure gauge on the discharge pipe; the gate valve adjusts the head on the pump.
Q2. How is input power measured? By an energy meter.
Q3. Can pump speed be measured? Yes, with a tachometer, which is available as an optional extra.
