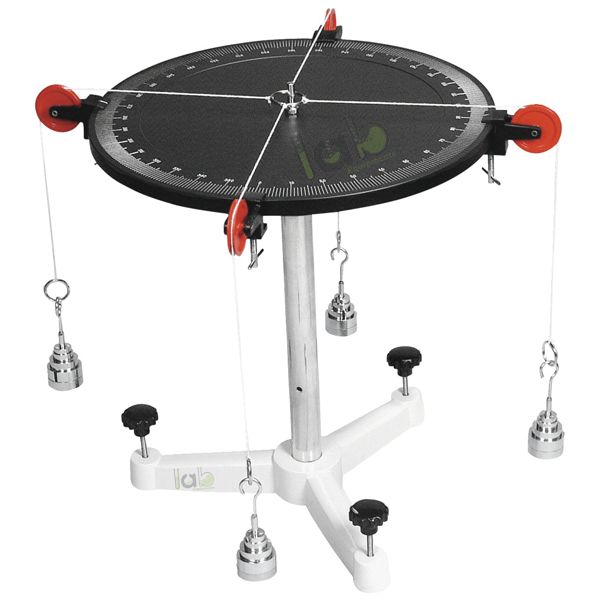

Quick Answer: Universal Force Table is a circular aluminium disc 40 cm in diameter, graduated into 360 degrees, for experiments on the laws of triangle, parallelogram and polygon of forces.
Last updated: October 2026
Key Features
Circular aluminium disc, 40 cm diameter, graduated into 360 degrees
Levelling screws
Four sliding clamp pulleys
Central ring and string
Four sets of iron slotted weights: nine slotted weights and one hanger per set, 50 g each
Technical Specifications
Specification
Value
Disc
Circular, aluminium, 40 cm diameter
Graduation
360 degrees
Pulleys
Four sliding clamp pulleys
Levelling
Levelling screws
Weights
Four sets, each with nine slotted weights and one hanger, 50 g each
Also supplied
Central ring and string
About This Product
Used as mechanics lab equipment for experimental work on the triangle, parallelogram and polygon of forces, the table has four sliding clamp pulleys that can be set around its 360-degree scale. A central ring, string and levelling screws complete the set, together with four sets of slotted weights for Applied Mechanics practicals.
Frequently Asked Questions
Q1. What weights come with the Universal Force Table? Four sets of slotted weights; each set contains nine slotted weights and one hanger, 50 g each.
Q2. Which laws of forces can be studied? The laws of triangle, parallelogram and polygon of forces.
