Quick Answer: Bernoulli Theorem Apparatus demonstrates Bernoulli's theorem experimentally using a one-piece clear acrylic test section with convergent and divergent parts, tapped at different points to 9 piezometer tubes. Water circulates in a closed loop through stainless steel tanks.
Last updated: October 2026
Key Features

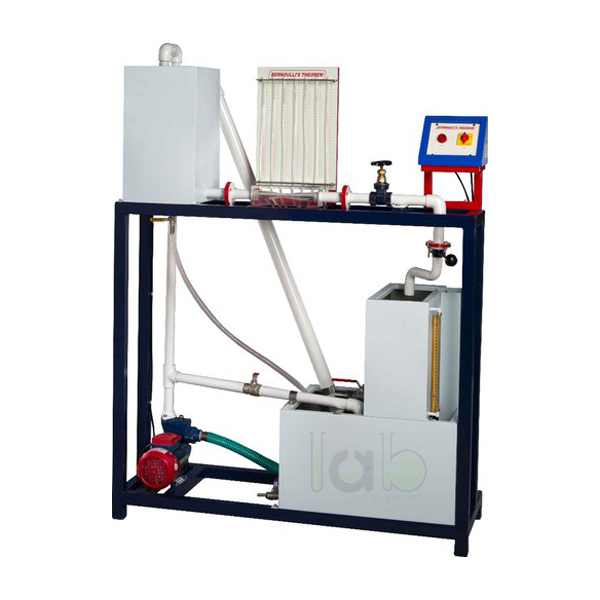

One-piece clear acrylic test section with convergent and divergent parts
9 P.U. piezometer tubes connected through pressure tappings
Stainless steel inlet tank of 20 litres and supply tank of 70 litres
Measuring tank of 20 litres with piezometer tube and scale, plus electronic stop watch
Closed loop water circulation by FHP pump; GI/PVC piping
Compact, stand alone set-up with stainless steel wetted parts
Technical Specifications
Specification
Value
Test section
Acrylic, convergent and divergent
Inlet tank
20 litres, stainless steel
Supply tank
70 litres, stainless steel
Measuring tank
20 litres, with piezometer tube and scale
Piezometer tubes
P.U., 9 Nos.
Pump
FHP
Piping
GI / PVC, BSP
Stop watch
Electronic
Electricity
230 +/- 10 VAC, 50 Hz, single phase, with earthing; 5 A three pin socket with switch
Water
Tap water connection ½" BSP; distilled water 60 litres (optional)
About This Product
With water circulating in a closed loop between the tanks and the test section, the piezometer tubes show the pressure head at each tapping as the section converges and diverges. The flow rate comes from the measuring tank and stop watch, giving FLUID MECHANICS LAB students the data needed to check Bernoulli's theorem experimentally.
Frequently Asked Questions
Q1. How many piezometer tubes does it have? 9 P.U. piezometer tubes, connected through pressure tappings at different locations on the acrylic test section.
Q2. What power and water supply is needed? A 230 +/- 10 VAC, 50 Hz single phase supply with proper earthing (neutral to earth voltage less than 5 VAC) and a 5 A three pin socket with switch for the pump, plus a ½" BSP tap water connection. 60 litres of distilled water is optional.
