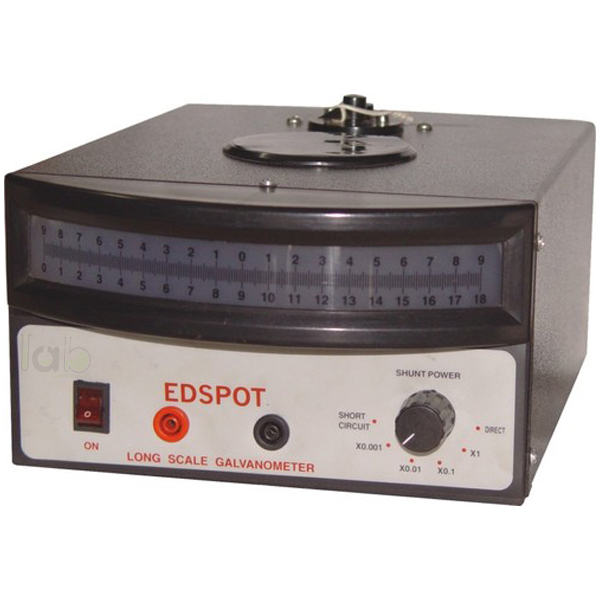

Galvanometer EDSPOT
Product Code : EL-LM-10390
Quick Answer: Galvanometer EDSPOT is a light-spot galvanometer with a taut suspension movement whose reading appears as a hairline in a bright spot on a translucent screen, with sensitivity ranges from x1 to x0.001.
Last updated: October 2026
Key Features
- Integral taut suspension movement, lamp unit and scale
- Hairline reading in a light spot on a translucent screen
- Front scale in millimetres: 0-18 cm (left zero) and 9-0-9 cm (centre zero)
- Sensitivities x1, x0.1, x0.01 and x0.001 for current and voltage, with constant input resistance
- Lock/unlock, zero and sensitivity adjustment at the front; damping of transverse suspension vibrations
- 4 mm colour-coded signal input sockets; 220-240 V AC mains, 50/60 Hz
Technical Specifications
| Specification | Value |
|---|---|
| Movement | Integral taut suspension |
| Display | Hairline in light spot on translucent screen |
| Scales | 0-18 cm (left zero); 9-0-9 cm (centre zero), graduated in mm |
| Sensitivity ranges | x1, x0.1, x0.01, x0.001 |
| Input terminals | 4 mm colour-coded sockets |
| Supply | 220-240 V AC mains, 50/60 Hz |
About This Product
Part of the Lab Meters range, it is used to detect and read currents and voltages: the signal goes to the front sockets, the movement is unlocked and zeroed, and one of four sensitivities is chosen while the light spot is read on the screen.
Frequently Asked Questions
Q1. How is the reading displayed?
As a hairline in a bright light spot on a translucent screen, read against a millimetre scale marked 0-18 cm with left zero or 9-0-9 cm with centre zero.
Q2. What supply does it need?
It runs on 220-240 V AC mains at 50/60 Hz.
Lab Equipments Ambala packs and ships export orders for buyers in the United Kingdom, Sri Lanka, Zimbabwe and Bolivia.
For a quotation on the Galvanometer EDSPOT, contact Lab Equipments Ambala.
