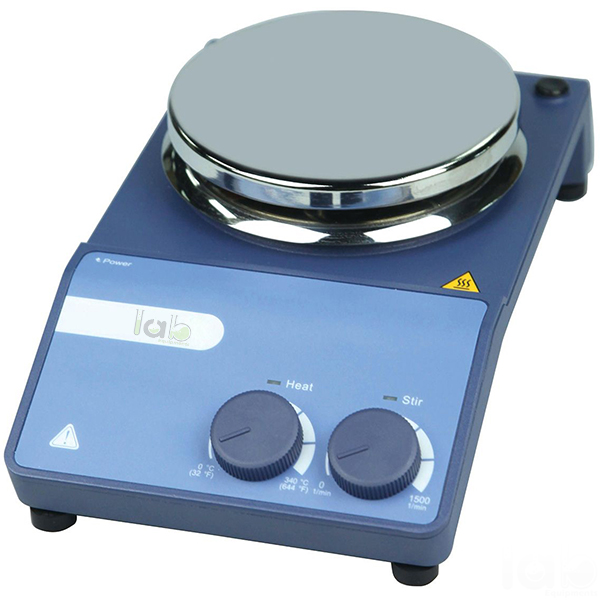

Quick Answer: Hotplate & Magnetic Stirrer has a 135 mm stainless steel work plate with ceramic coating, heats from room temperature to 340°C and stirs up to 20 L of water at 0 to 1500 rpm using a DC brushless motor.
Last updated: October 2026
Key Features
Stainless steel work plate with ceramic coating to resist corrosion
Separate safety circuit stops heating at 350°C
DC brushless motor holds a constant speed when the load changes
High magnetic adhesion keeps the stirrer bar stable at the bottom of the container
Enclosed assembly, protection class IP42
Scale displays for speed and temperature
Technical Specifications
Specification
Value
Work plate
135 mm, stainless steel with ceramic coating
Speed range
0-1500 rpm
Heating temperature range
RT-340°C
Safety temperature
350°C
Power
530 W
Heating output
500 W
Motor rating input / output
18 W / 10 W
Motor type
DC brushless
Max. stirring quantity (H2O)
20 L
Max. magnetic bar (L x Ø)
80 mm
Stirring positions
1
Frequency
50/60 Hz
Protection class
IP42
Dimensions (W x D x H)
160 x 280 x 85 mm
Weight
2.8 kg
Permissible relative humidity
80%
About This Product
Within Hot Plates, this is a stirrer with scale displays for both speed and temperature, driven by a variable speed DC brushless motor that holds a constant speed even when the load changes. A separate safety circuit automatically stops heating when the temperature reaches 350°C, and the assembly is enclosed to protection class IP42. High magnetic adhesion keeps the stirrer bar stable at the bottom of the container.
Frequently Asked Questions
Q1. What stops the Hotplate & Magnetic Stirrer from overheating? A separate safety circuit automatically stops heating when the temperature reaches 350°C.
Q2. What volume of water can it stir? Up to 20 L of water, at speeds from 0 to 1500 rpm.
Q3. What is the largest stirrer bar it takes? The maximum magnetic bar size is 80 mm.
