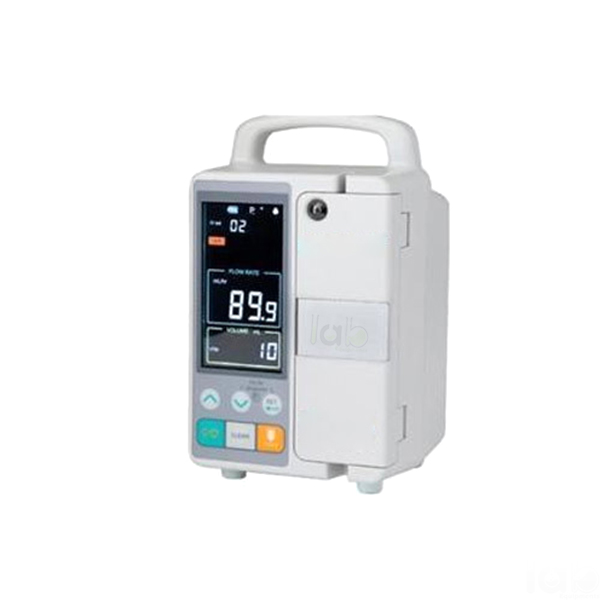

Infusion Pump With Accessories
Product Code : EL-RAAE-10967
Quick Answer: Infusion Pump With Accessories is a portable, single-channel volumetric pump for IV fluid infusion, working on the peristaltic principle with a flow-rate range of 1 – 1,200 ml/h in 1 ml/h steps. It runs on AC or its integrated battery and switches between the two automatically.
Last updated: October 2026
Key Features
- Programmable infusion by volume, time and flow-rate
- Flow-rate accuracy ± 5 %
- Open system, compatible with commercial infusion sets
- Air bubble and occlusion detection with automatic self-test
- Battery autonomy > 5 h at 30 ml/h, with integrated charger
- Splash- and shock-proof plastic enclosure for rail or IV pole mounting
Technical Specifications
| Specification | Value |
|---|---|
| Type | Volumetric, peristaltic, single channel |
| Flow-rate range | 1 – 1,200 ml/h, 1 ml/h step |
| Accuracy | ± 5 % |
| Bolus program | 100 – 900 ml/h |
| Volume limit range | 1 – 9,999 ml, 1 ml step |
| KVO program | 1 ml/h for infusion rate < 10 ml/h; 3 ml/h for infusion rate > 10 ml/h |
| Battery autonomy | > 5 h (at 30 ml/h) |
| Power requirements | 110 – 220 V / 50 – 60 Hz |
| Power consumption | 25 W |
| Mounting | Rail and IV pole |
About This Product
Clinical staff mount the pump on a rail or IV pole and programme it by volume, time and flow-rate to infuse IV fluids through commercial infusion sets. Air bubble and occlusion detection, an automatic self-test and audio/visual alarms with a silencing feature flag faults during an infusion. Within Resuscitation and Anaesthesiology Equipment, it runs on AC or battery, switching automatically between modes and recharging when connected to mains.
Frequently Asked Questions
Q1. What flow-rate range does the infusion pump cover?
It covers 1 – 1,200 ml/h in 1 ml/h steps with an accuracy of ± 5 %. A bolus program runs at 100 – 900 ml/h.
Q2. How long does the battery last?
Battery autonomy is more than 5 h at 30 ml/h. The integrated charger recharges the battery automatically when the pump is connected to mains.
Q3. Which alarms does the pump have?
Audio/visual alarms, with a silencing feature, for occlusion, air-in-line, door open, status and end of infusion or program, battery and power supply status or failure, and system errors.
To order the Infusion Pump With Accessories or ask a question about it, send an enquiry to Lab Equipments Ambala.
