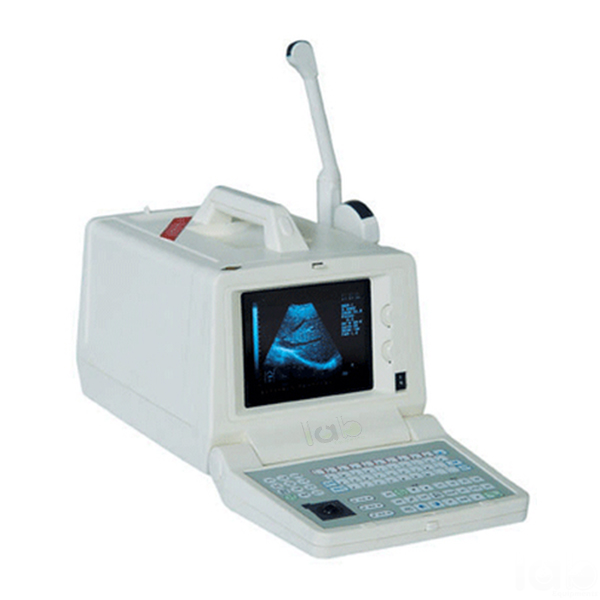

Ultrasound Scanner Mobile w/access
Product Code : EL-MDE-10865
Quick Answer: Ultrasound Scanner Mobile w/access is a mobile diagnostic imaging system that integrates the scanner, 2 probes (convex and linear), a matching trolley and a video-printer. It covers general abdomen, obstetrics and gynaecology, small parts, neonatal head and hip, cardio-vascular, urology and intra-operative applications.
Last updated: October 2026
Key Features
- Integrated system: scanner, 2 probes, matching trolley and video-printer
- Display modes B, dual B, M, and B and M, with 6 level zoom
- Convex and linear piezoelectric probes, electronically scanned, on two transducer ports
- Freeze function storing approx. 25 images
- B-mode measurements include distance, area, circumference, volume, gestational age and foetal weight
- Approx. 25 cm (10 inch) B/W monitor with 256 grey levels
Technical Specifications
| Specification | Value |
|---|---|
| Applications | General abdomen, obstetrics and gynaecology, small parts, neonatal head and hip, cardio-vascular, urology, intra-operative |
| System | Scanner, 2 probes, matching trolley, video-printer |
| Display modes | B, dual B, M, B and M |
| Zoom | Adjustable field-of-view, 6 level zoom |
| Imaging technologies | Dynamic frequency imaging, multi-stage focusing, aperture control |
| Depth range selection | Convex sector and linear image, 3 steps |
| Probes | Piezoelectric, electronically scanned: convex and linear |
| Image storage | Freeze function, approx. 25 images |
| Monitor | High resolution B/W, approx. 25 cm (10 inch) diagonal, with reflection filter |
| Grey scale | 256 levels |
| Video output | 625 lines/frame |
| Data interface | RS232, BNC, IEEE, USB or equivalent |
| Power supply | 220 V / 50 Hz |
About This Product
Health facilities use this mobile scanner for diagnostic imaging across abdominal, obstetric and gynaecological, small-part, neonatal, cardio-vascular, urology and intra-operative work. Two transducer ports keep both probes connected, with an electronic switch between them, and the operator works from an alphanumeric keyboard with trackball and time gain control. For obstetric work, this Medical Diagnostic Equipment item calculates gestational age and foetal weight in B-mode and has a user-programmable gestational table, while M-mode gives velocity, time interval, depth, heart rate and LV function.
Frequently Asked Questions
Q1. Which probes come with the mobile ultrasound scanner?
The system integrates 2 piezoelectric, electronically scanned probes, one convex and one linear. Two transducer ports keep both available, with an electronic switch between them.
Q2. What measurements can be made in B-mode?
Distance, area and circumference by ellipse and trace method, volume, ratio, gestational age, foetal weight and angle.
Q3. What power supply does the scanner need?
It runs on 220 V / 50 Hz.
