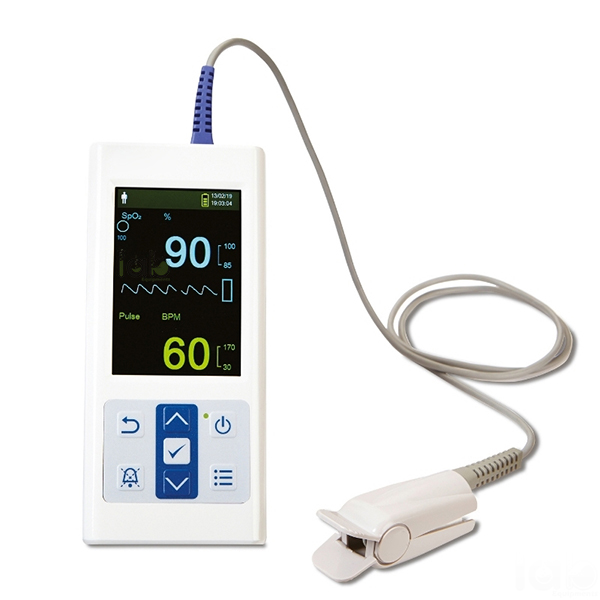

Handheld Pulse Oximeter Incl. Respiratory
Product Code : EL-MDE-10855
Quick Answer: Handheld Pulse Oximeter Incl. Respiratory is a portable, battery powered monitor that shows SpO2, pulse rate and respiratory rate in real time for children, neonates and adults, with a running time on battery of at least 20 hours.
Last updated: October 2026
Key Features
- SpO2 70 - 100%, pulse rate 30 - 240 bpm, respiratory rate 5 to 80 rpm
- SpO2 accuracy within ± 2% in ideal conditions in adults, within ± 3% for all patients and conditions
- Patient age group input; display indicates high and normal respiratory rate for the age entered
- Display indicates when SpO2 < 90% (hypoxaemia)
- Detection in low perfusion down to perfusion index 0.1%, with automatic correction for movement and ambient light
- Rechargeable, non-replaceable Li-ion battery plus mains operation
Technical Specifications
| Specification | Value |
|---|---|
| Parameters | SpO2, pulse rate, respiratory rate |
| Patients | Children, neonates, adults |
| SpO2 range | 70 - 100 % |
| SpO2 accuracy | ± 2% (ideal conditions, adults); ± 3% (all patients and perfusion/movement conditions) |
| SpO2 resolution | 1 % |
| Pulse rate range | 30 - 240 bpm |
| Pulse rate accuracy | ± 3 bpm (ideal conditions) |
| Pulse rate resolution | 1 bpm |
| Respiratory rate range | 5 to 80 rpm |
| Respiratory rate accuracy | ± 2 rpm (ideal conditions) |
| Respiratory rate resolution | 1 rpm |
| Display refresh rate | ≤ 5 s |
| Low perfusion | Down to perfusion index 0.1% |
| Weight (device and probe) | < 300 g |
| Battery | Rechargeable, non-replaceable Li-ion; ≥ 20 hours on battery only |
| Operating conditions | 5 to 40 deg C, 10 to 90 % RH, non-condensing |
| Storage conditions | 0 to 50 deg C, 10 to 95% RH, non-condensing |
About This Product
Entering the patient's age group lets the display mark the respiratory rate count as high or normal for that age, alongside SpO2, pulse rate, signal quality and battery state. Audible and visual alarms cover sensor error or disconnection, system errors and low battery, and the device switches automatically between battery and mains when recharging or during a mains failure. In the Medical Diagnostic Equipment group, it is designed for demanding environments with shock and vibration and weighs under 300 g with its probe.
Frequently Asked Questions
Q1. What does the Handheld Pulse Oximeter Incl. Respiratory measure?
Oxygen saturation (SpO2), pulse rate and respiratory rate, in real time, for children, neonates and adults.
Q2. How long does it run on battery?
Running time on battery only is at least 20 hours; it can also run from mains while connected or recharging.
Q3. Does it work in low perfusion conditions?
Yes. It is suitable for detection in low perfusion conditions down to a perfusion index of 0.1%.
