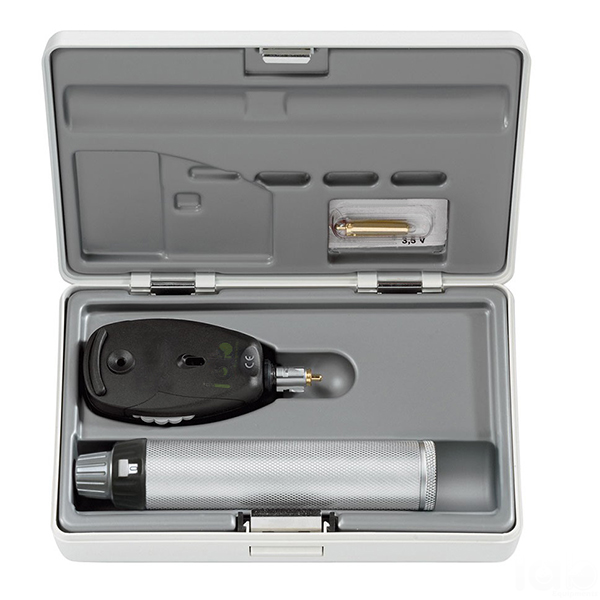

Ophthalmoscope Set
Product Code : EL-MDE-10863
Quick Answer: Ophthalmoscope Set is a diagnostic head threaded on a handle for viewing the interior of the eye as an upright, 12-16x magnified image. It has a lens range of at least -20D to +20D in steps of no more than 1D, and red-free, blue, green and polarisation filters.
Last updated: October 2026
Key Features
- Magnification 12-16x
- Lens range not smaller than -20D to +20D, in steps not greater than 1D
- Red-free, blue, green and polarisation filters
- Apertures: small, large, semi circle and fixation star
- Dust-free sealed, aspherical optics with anti-reflection lens
- Light 8,000-12,000 lux, cool white 3100-5500K
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 12-16x |
| Lens range | Not smaller than -20D to +20D, steps not greater than 1D |
| Filters | Red-free, blue, green, polarisation |
| Apertures | Small, large, semi circle, fixation star |
| Light intensity | 8,000-12,000 lux |
| Colour temperature | Cool white, 3100-5500K |
| Lens | Scratchproof, anti-reflection; glass (preferred) or plastic |
| Batteries | AA or rechargeable (supplied without batteries) |
| Battery life | At least 5 hours |
| Weight | < 0.20 kg without batteries |
| Operating conditions | 10 to 40 deg C, 15 to 90% relative humidity |
| Storage conditions | 0 to 50 deg C, 15 to 90% relative humidity |
| Case | Hard storage case |
About This Product
Held relatively close to the subject's eye, the ophthalmoscope lets the observer see the inside of the eye as an upright, magnified image. The examiner chooses between the small, large, semi circle and fixation star apertures and the four filters, and selects lenses across the dioptre range in steps of no more than 1D. This Medical Diagnostic Equipment set is liquid splash resistant, weighs under 0.20 kg without batteries and is kept in a hard storage case.
Frequently Asked Questions
Q1. What lens range does the Ophthalmoscope Set cover?
The lens range is not smaller than -20D to +20D, with steps not greater than 1D.
Q2. Which filters does the ophthalmoscope have?
It has red-free, blue, green and polarisation filters.
Q3. What batteries does it use?
It takes AA or rechargeable batteries, giving at least 5 hours of use on a full charge or fresh batteries. It is supplied without batteries.
Questions about the Ophthalmoscope Set? Write to Lab Equipments Ambala.
