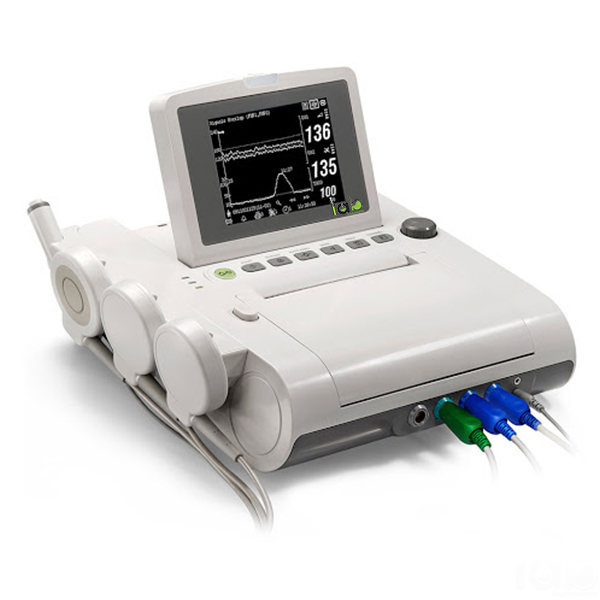

CTG Monitor With Accessories
Product Code : EL-MDE-10858
Quick Answer: CTG Monitor With Accessories is a tabletop cardiotocograph with 2 foetal heart rate channels, for twins, and 1 uterine contraction channel, plus an integrated thermal printer and AC and battery power.
Last updated: October 2026
Key Features
- 2 FHR and 1 UC channels, with twins detection and separate visualisation of the two FHR signals
- Ultrasound doppler FHR detection, 40 – 240 bpm, accuracy ± 2 bpm
- External pressure-sensitive UC detection, 0 – 100 units, accuracy ± 10 %
- Automatic Foetal Movement (AFM) feature and wired remote switch for event marking
- Integrated thermal printer, 110 – 112 mm printing area, paper speed 1, 2 and 3 cm/min
- LCD 5.6 inches; audio/visual alarms with adjustable FHR thresholds
Technical Specifications
| Specification | Value |
|---|---|
| Type | External cardiotocograph, tabletop |
| Channels | 2 FHR, 1 UC |
| FHR range | 40 – 240 bpm |
| FHR accuracy | ± 2 bpm |
| FHR resolution | 1 bpm |
| Ultrasound frequency | 1 – 2 MHz ± 10 %, depending on the model |
| Ultrasound output power | < 10 mW/cm2 |
| UC range | 0 – 100 units |
| UC accuracy | ± 10 % |
| UC resolution | 1 unit |
| Printer | Thermal, 110 – 112 mm wide, Z-folded paper |
| Paper speed | 1, 2 and 3 cm/min |
| Display | LCD, 5.6 inches |
| Power | 110 – 220 V / 50 – 60 Hz, 50 W |
| Battery autonomy | > 2 h |
About This Product
Ultrasound picks up the foetal heart rate while a pressure-sensitive transducer records uterine contractions, and the FHR1, FHR2 and UC values and waveforms are shown on screen and printed on graduated paper with a separate area for each. With twins, the two heart signals are displayed separately and the audio channel can be switched between FHR1 and FHR2. Patient information and exams are stored on this Medical Diagnostic Equipment unit, which changes between AC and battery power automatically and recharges when connected to mains.
Frequently Asked Questions
Q1. Can the CTG Monitor With Accessories monitor twins?
Yes. It has 2 FHR channels with twins detection and shows the two signals separately.
Q2. What paper does the printer use?
Z-folded thermal paper, with a 110 – 112 mm printing area, at 1, 2 or 3 cm/min.
Q3. How are events marked?
With a wired remote switch for event marking.
