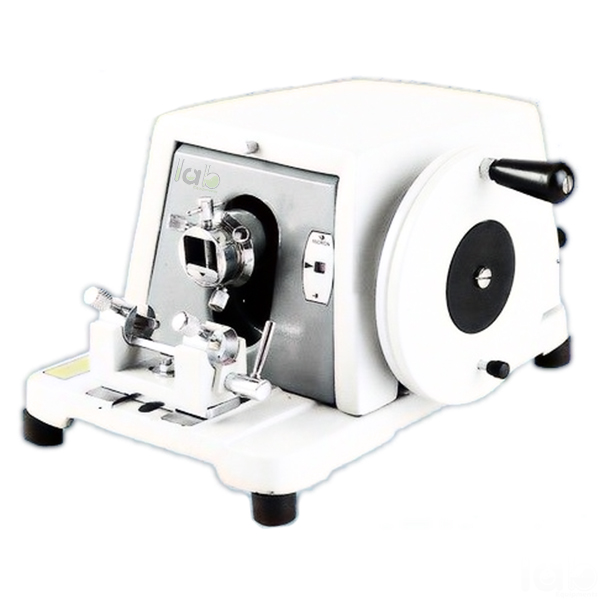

Quick Answer: Rotary Microtome is a section-cutting instrument with feed adjustment from 1 to 50 micron, a ratchet-driven object holder, a safety device that disengages the feed, and a 120 mm heat-treated steel razor tiltable up to 30º.
Feed indicator at the front, feed setting at the back
Ratchet wheel with cone and inclined plane mechanism advances the object holder with each revolution
Safety device automatically disengages the feed mechanism
120 mm heat-treated steel razor, tilt adjustable up to 30º on a reference scale
Heavy base with hinged cover protecting the interior mechanism and knife holder
Technical Specifications
Specification
Value
Minimum thickness
1 micron
Feed adjustment
1-50 micron
Total feed excursion
28 mm
Razor
120 mm, heat-treated steel
Razor tilt
Up to 30º on reference scale
Overall size
40 x 38 x 23 cm, with wooden case
Net weight
30 kg approx.
About This Product
Each complete turn of the drive wheel brings the feed panel into the teeth of the ratchet wheel, which advances the object holder through a cone and inclined plane mechanism. Sections can be set between 1 and 50 micron on this Biology Lab Equipment microtome, and a safety device disengages the feed automatically. The heavy base has a hinged cover over the mechanism and knife holder, and the supplied 120 mm razor can be tilted up to 30º on a reference scale.
Frequently Asked Questions
Q1. What section thickness can the Rotary Microtome cut? Feed adjustment runs from 1 to 50 micron, with a minimum thickness of 1 micron.
Q2. What razor is supplied with the microtome? A 120 mm razor made from heat-treated steel and tested for micro structure, with its tilt angle adjustable up to 30º on a reference scale.
