Quick Answer: U-Core Electromagnetic Assembly is an electromagnetism apparatus in which a current-carrying winding magnetises a U-shaped core, giving two pole faces that attract an armature or other ferromagnetic object.
Last updated: October 2026
Key Features

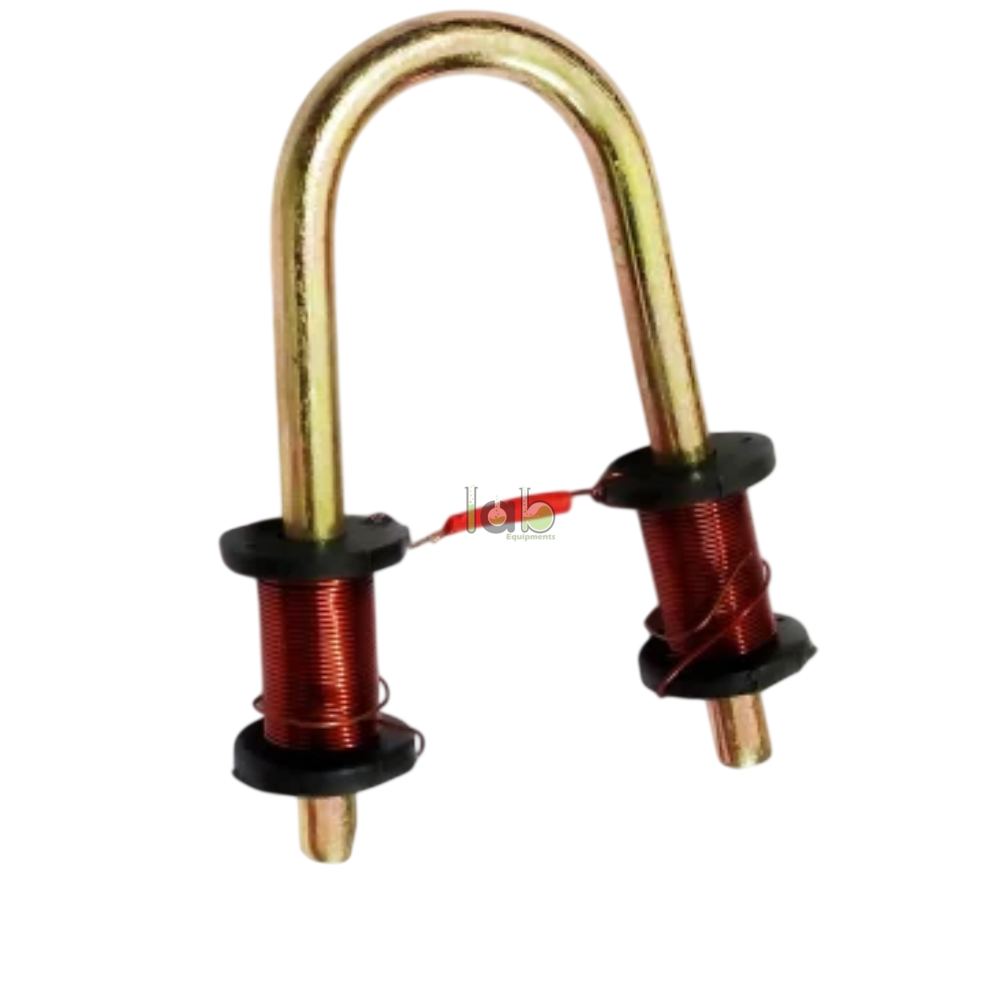

U-shaped magnetic core with two pole faces
Winding coil or coils magnetise the core when current flows
Armature or test object bridges the poles to complete the magnetic path
For use only with a current-limited low-voltage laboratory supply
About This Product
With the coil on the core and the armature near the two pole faces, a current-limited low-voltage supply is switched on briefly so that attraction with and without current can be compared. For Magnetism teaching, the assembly connects the coil-and-core idea with relays, electric bells and lifting magnets, and the armature closes a short magnetic circuit across the adjacent poles.
Frequently Asked Questions
Q1. Why is the core U-shaped? The U shape places two pole faces side by side, so an armature or magnetic object can bridge them and complete a shorter magnetic path.
Q2. Can the U-Core Electromagnetic Assembly be connected to mains electricity? No. Direct mains connection is unsafe and can damage the winding. Use a current-limited low-voltage supply, switch on only briefly and let the coil cool if it warms.
