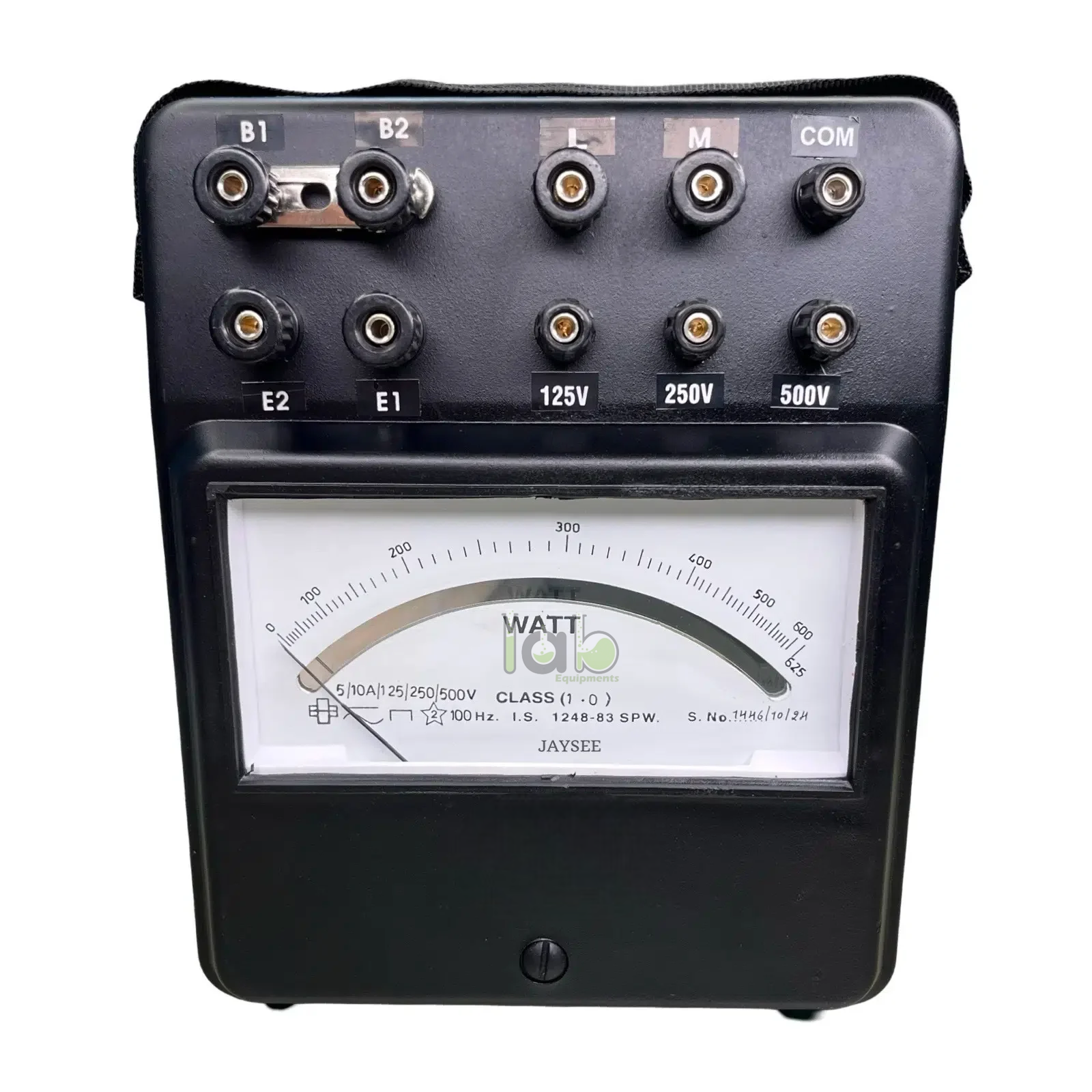

Quick Answer: Professional Analog Wattmeter is a pointer-scale instrument for measuring electrical power in compatible laboratory circuits, using a current coil wired in series with the load and a voltage coil wired in parallel.
Last updated: October 2026
Key Features
Analog pointer-scale indication of electrical power
Current coil connected in series with the load
Voltage (pressure) coil connected in parallel across the supply or load section
Incorrect connection of either coil can damage the instrument
About This Product
Power measurement is the job of this Lab Meters instrument: in load, transformer, power-supply and motor experiments it shows students how voltage, current and load conditions combine into one reading. Connections are made with the circuit switched off, following the wiring diagram, and supply is then applied gradually while the pointer is watched.
Frequently Asked Questions
Q1. How is the analog wattmeter connected? The current coil goes in series with the load and the voltage coil in parallel across the supply or load section, following the wiring diagram for the meter.
