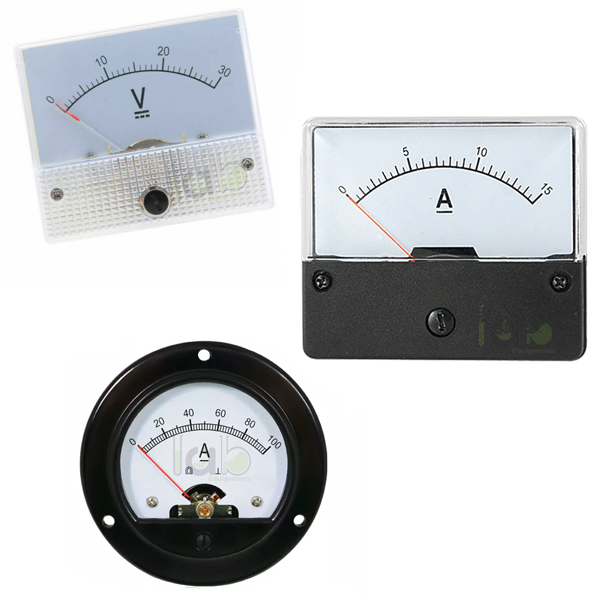

Panel Meters
Product Code : EL-LM-10381
Quick Answer: Panel Meters from Lab Equipments Ambala are pointer-type meters with a knife-edge pointer, made in four case styles from 65 x 65 mm square to 80 x 100 mm. Scale lengths run from 50 mm to 85 mm, and every version has a stated accuracy of ± 2 F.S.D.
Last updated: October 2026
Key Features
- Four case styles: a clear transparent case on a white ABS base, or an unbreakable moulded black ABS case
- Scale lengths of about 50 mm, 60 mm and 85 mm
- Knife-edge pointer, with or without an anti-parallax mirror scale
- Stated accuracy of ± 2 F.S.D. on all four versions
- Overall sizes of 65 x 65 mm square, 80 mm round, 80 x 80 mm square and 80 x 100 mm square
Technical Specifications
| Version | Case | Scale length (approx.) | Pointer and scale | Accuracy | Overall size (approx.) |
|---|---|---|---|---|---|
| 1 | Clear transparent case with white ABS base | 50 mm | Knife-edge pointer, with or without anti-parallax mirror scale | ± 2 F.S.D. | 65 x 65 mm square |
| 2 | Unbreakable moulded ABS plastic black case | 50 mm | Knife-edge pointer, with or without anti-parallax mirror scale | ± 2 F.S.D. | 80 mm round |
| 3 | Clear transparent case with white ABS base | 60 mm | Knife-edge pointer with anti-parallax mirror scale | ± 2 F.S.D. | 80 x 80 mm square |
| 4 | Unbreakable moulded ABS plastic black case with clear transparent front window | 85 mm | Knife-edge pointer, with or without anti-parallax mirror scale | ± 2 F.S.D. | 80 x 100 mm square |
About This Product
A panel meter is fitted into an instrument panel or board and read from the front, so the four versions differ mainly in case material, shape and scale length. The 50 mm versions suit compact panels; the 85 mm version, with its clear front window, gives the longest scale for reading at a distance. Where the anti-parallax mirror scale is fitted, students line the pointer up with its reflection before taking a reading. Panel Meters belong to the Lab Meters range of our physics lab equipment.
Frequently Asked Questions
Q1. What accuracy are the Panel Meters made to?
All four versions have a stated accuracy of ± 2 F.S.D.
Q2. Which version has the longest scale?
The version in the black ABS case with a clear transparent front window has an 85 mm scale and an overall size of about 80 x 100 mm.
Q3. Do the Panel Meters have an anti-parallax mirror scale?
The 60 mm version in the clear case comes with the mirror scale. The other three versions are offered with or without it.
Beyond India, Lab Equipments Ambala ships to laboratories and education buyers in Malaysia, Colombia and Djibouti.
For a quotation on the Panel Meters, contact Lab Equipments Ambala.
