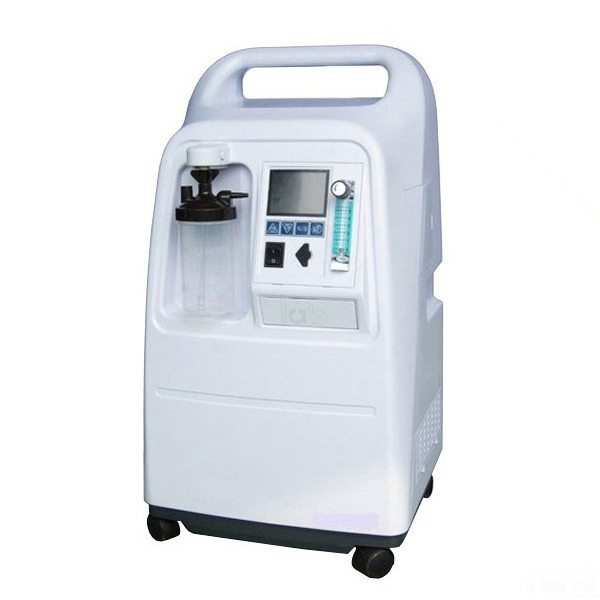

Oxygen Concentrator
Product Code : EL-RAAE-10968
Quick Answer: Oxygen Concentrator draws in ambient air and supplies a continuous flow of concentrated oxygen at 93%, adjustable from 1 to 10 LPM on a flowmeter marked at 0.5 L intervals. It is not suitable as an oxygen source for ventilators, CPAP devices or other respiratory-support equipment.
Last updated: October 2026
Key Features
- Integrated oxygen sensor measuring concentration at the flowmeter entrance
- Visual and audible alerts for low/high output pressure, no flow, low oxygen concentration (<82%) and power failure
- Sound level less than 52 dB (A)
- 4 antistatic swivel castors, 2 with brakes, and an integrated handle
- Digital or analogue meter showing cumulative hours of operation
- Oxygen outlet with approx. 6 mm barbed fitting or equivalent
Technical Specifications
| Specification | Value |
|---|---|
| Oxygen concentration | 93% |
| Flowmeter range | 1 to 10 LPM, markings at 0.5 L intervals |
| Maximum output flow | 10 LPM |
| Output pressure | Min 55 kPa |
| Low-concentration alert | < 82% |
| Sound level | < 52 dB (A) |
| Power requirements | 220V-240V, 50Hz-60Hz or 110V 50/60Hz |
| Weight | 28 kg |
| Operating conditions | 10 to 40 °C / RH 15 to 85% |
| Storage conditions | -40 °C to 55 °C / RH ≤ 95% |
| Operating altitude | 0 to 2286 m above sea level |
About This Product
The concentrator separates oxygen from ambient air and moves on 4 antistatic castors, with an integrated handle for easy positioning. Its built-in sensor monitors concentration continuously and gives a visual and audible alert if it falls below 82%, if output pressure is too low or high, if there is no flow, or if power fails. As a piece of Resuscitation and Anaesthesiology Equipment, it should not be used to supply ventilators, CPAP devices or High Flow Nasal Oxygen.
Frequently Asked Questions
Q1. Can the oxygen concentrator supply a ventilator or CPAP device?
No. It is not suitable as an oxygen source for other medical equipment providing respiratory support, such as ventilators, CPAP devices or High Flow Nasal Oxygen.
Q2. What oxygen flow can it provide?
The flowmeter is continuously adjustable from 1 to 10 LPM, with markings at 0.5 L intervals. Maximum output flow is 10 LPM at 93% oxygen.
Q3. How heavy is the concentrator?
It weighs 28 kg and moves on 4 antistatic swivel castors, 2 of which have brakes.
Questions about the Oxygen Concentrator? Write to Lab Equipments Ambala.
