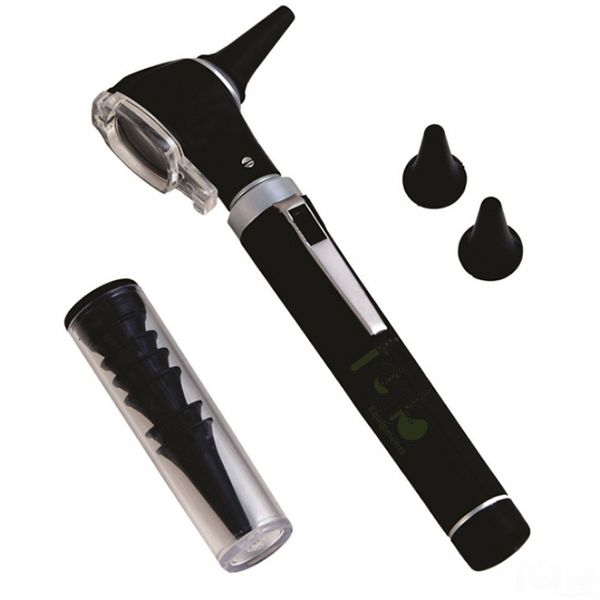

Otoscope Set
Product Code : EL-MDE-10862
Quick Answer: Otoscope Set is a diagnostic head on a handle for visual examination of the ear canal and eardrum, with a 2.5-3x viewing lens and 8,000-12,000 lux light. It comes in a hard storage case with reusable specula and a port for an insufflation bulb.
Last updated: October 2026
Key Features
- Viewing lens magnification 2.5-3x
- Cool white light, 3100-5500K, 8,000-12,000 lux
- Reusable specula; scratch-resistant lens, glass or plastic
- Port for an insufflation bulb
- Handle with on/off switch; set in a hard storage case
- Runs on AA, AAA or rechargeable batteries for at least 3 hours
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 2.5-3x |
| Light intensity | 8,000-12,000 lux |
| Colour temperature | Cool white, 3100-5500K |
| Specula | Reusable |
| Lens | Scratch-resistant; glass (preferred) or plastic |
| Weight | < 0.170 kg without batteries |
| Batteries | Standard AA or AAA, or rechargeable (AA/AAA type supplied without batteries) |
| Battery life | At least 3 hours |
| Operating conditions | 10 to 40 deg C, 15 to 90% relative humidity |
| Storage conditions | 0 to 50 deg C, 15 to 90% relative humidity |
| Cleaning | Cleanable with alcohol wipes; autoclavable |
| Case | Hard storage case |
About This Product
With a reusable speculum on the diagnostic head, the examiner switches on the handle and views the canal and tympanic membrane through the 2.5-3x lens; an insufflation bulb can be attached at the port provided. Each speculum must be thoroughly cleaned and disinfected after use to prevent cross contamination. Batteries are ordered separately for this Medical Diagnostic Equipment set, and the rechargeable version shows a low battery or charge status indicator.
Frequently Asked Questions
Q1. What magnification does the Otoscope Set lens give?
The viewing lens magnifies 2.5-3x, with cool white light of 8,000-12,000 lux.
Q2. Are batteries included with the Otoscope Set?
Batteries should be ordered separately. The AA/AAA type is supplied without batteries; the rechargeable type has a low battery or charge status indicator.
Q3. How are the specula cleaned?
The specula are reusable and must be thoroughly cleaned and disinfected after each use to prevent cross contamination. The set is also cleanable with alcohol wipes.
To order the Otoscope Set or ask a question about it, send an enquiry to Lab Equipments Ambala.
