Quick Answer: Universal Electrode Holder fits over 100ml and 250ml glass beakers and holds 6 - 8 mm carbon rod electrodes or 19 mm wide metal strip electrodes, with brass connectors for 4 mm stackable lab leads.
Last updated: October 2026
Key Features
Fits over 100ml and 250ml glass beakers, held by small plastic lugs
Accepts 6 - 8 mm diameter cylindrical (e.g. carbon) electrodes
Accepts 19 mm wide, 0.8 mm (minimum) thick metal strip electrodes
Corrosion-resistant brass connectors with 4 mm sockets
Setscrew with a stop, so carbon electrodes are tightened without crushing
Complete with 2 carbon electrodes
Technical Specifications
Specification
Value
Beaker fit
100 ml and 250 ml glass beakers
Cylindrical electrodes
6 - 8 mm diameter
Strip electrodes
19 mm wide, 0.8 mm (minimum) thick
Connectors
brass, 4 mm sockets
Supplied with
2 carbon electrodes
Dimensions (L x W x H)
100 x 40 x 15 mm
About This Product

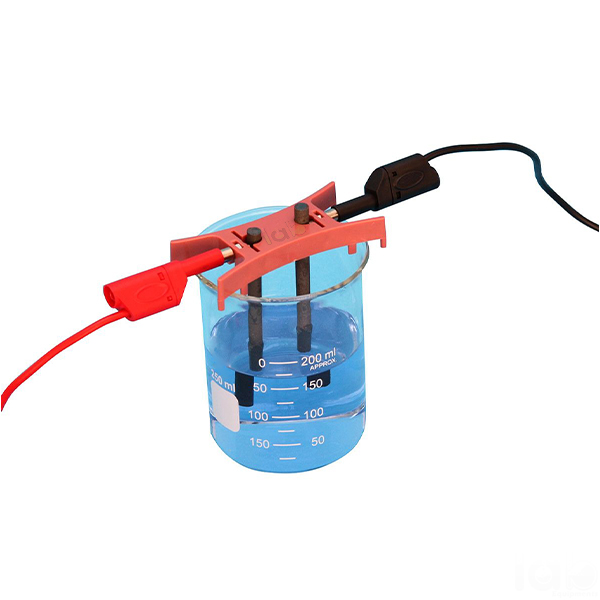

The holder rests across the top of a beaker, where small plastic lugs stop it slipping off, and its brass connectors take the usual 4mm stackable lab leads. One holder can switch between carbon rods and metal strips for Electrolysis work, and the stop on the setscrew lets carbon rods be tightened without being crushed.
Frequently Asked Questions
Q1. Which beakers does the Universal Electrode Holder fit? It is designed to fit over 100ml and 250ml glass beakers, held in place by small plastic lugs.
Q2. What electrodes can it hold? Cylindrical (e.g. carbon) electrodes of 6 - 8 mm diameter and metal strip electrodes 19 mm wide and at least 0.8 mm thick. Two carbon electrodes are supplied.
Q3. Does it work with standard lab leads? Yes. The brass connectors are compatible with the usual 4mm stackable type lab leads.
