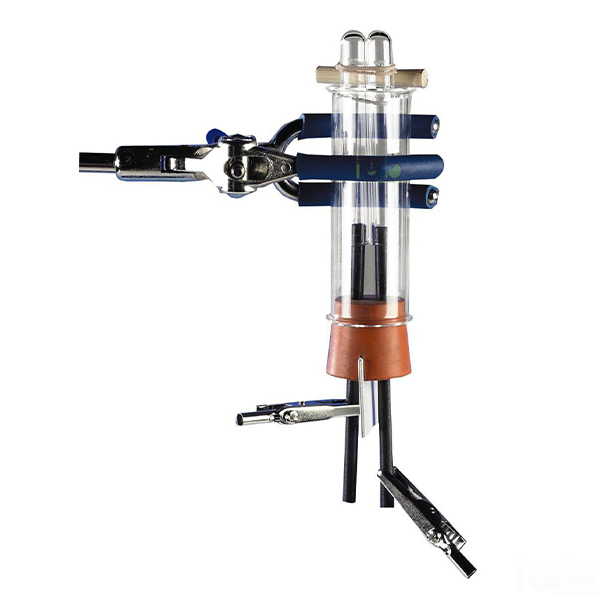

Quick Answer: Electrolysis Cells each consist of a 75 x 25 mm glass cylinder with a 2 hole rubber stopper fitted with 2 carbon electrodes, plus two 75 x 10 mm test tubes that collect the gases evolved.
Last updated: October 2026
Key Features
75 x 25 mm glass cylinder in each cell
2 hole rubber stopper fitted with 2 carbon electrodes
Two 75 x 10 mm test tubes to collect the gases
Test tubes held over the electrodes by a piece of wood and rubber bands
Crocodile clips for electrical contact
Insulating material between the electrodes prevents short circuiting
Technical Specifications
Specification
Value
Cylinder
glass, 75 x 25 mm
Stopper
rubber, 2 hole
Electrodes
2 carbon
Gas collection
two test tubes, 75 x 10 mm
Electrical contact
crocodile clips
About This Product
Current reaches the two carbon electrodes through crocodile clips, and the gases released rise into the test tubes suspended above them. In this Electrolysis cell, a piece of insulating material between the electrodes stops them short circuiting, while a piece of wood and rubber bands keep the test tubes in place.
Frequently Asked Questions
Q1. How are the gases collected in the Electrolysis Cells? The gases evolved are collected in two 75 x 10 mm test tubes suspended over the electrodes by a piece of wood and rubber bands.
Q2. What prevents the electrodes short circuiting? A piece of insulating material placed between the electrodes.
