Charles Law Apparatus, Basic

Charles Law Apparatus, Basic

Product Code : EL-POM-10374

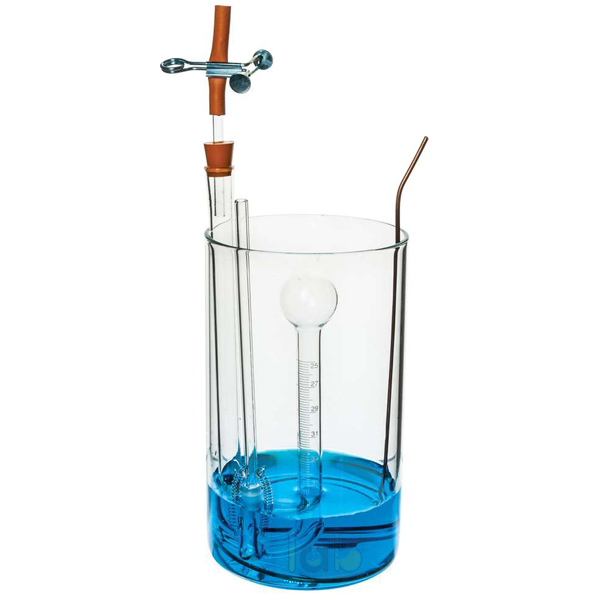

Quick Answer: Charles Law Apparatus, Basic is a U-shaped glass tube of about 15 mm diameter with a limb graduated 25 to 35 x 0.2 ml, contained in a 1000 ml tall-form beaker with stirrer.

Last updated: October 2026

Key Features

  • U-shaped glass tube of about 15 mm diameter
  • Plain limb 220 mm long; graduated limb 120 mm long, marked 25 to 35 x 0.2 ml and ending in a 37 mm bulb
  • Third limb, about 185 x 6 mm (length x bore), at right angles to the other two
  • Short rubber tubing with two pinch clips on a glass tube fitted by rubber bung in the wide-bore plain limb
  • Contained in a tall-form beaker of 1000 ml capacity, with stirrer

Technical Specifications

SpecificationValue
U-tube diameterAbout 15 mm
Plain limb220 mm long
Graduated limb120 mm long, 25 to 35 x 0.2 ml
Bulb37 mm diameter
Third limbAbout 185 x 6 mm (length x bore)
BeakerTall form, 1000 ml, with stirrer

About This Product

As its name indicates, this Properties of Matter apparatus is used for Charles' law work: the tube sits inside the tall-form beaker, the stirrer keeps the surroundings mixed, and the gas volume is read on the 0.2 ml graduations.

Frequently Asked Questions

Q1. What range does the graduated limb cover?
It is 120 mm long, graduated from 25 to 35 in 0.2 ml divisions, and ends in a bulb of 37 mm diameter.

To order the Charles Law Apparatus, Basic or ask a question about it, send an enquiry to Lab Equipments Ambala.
