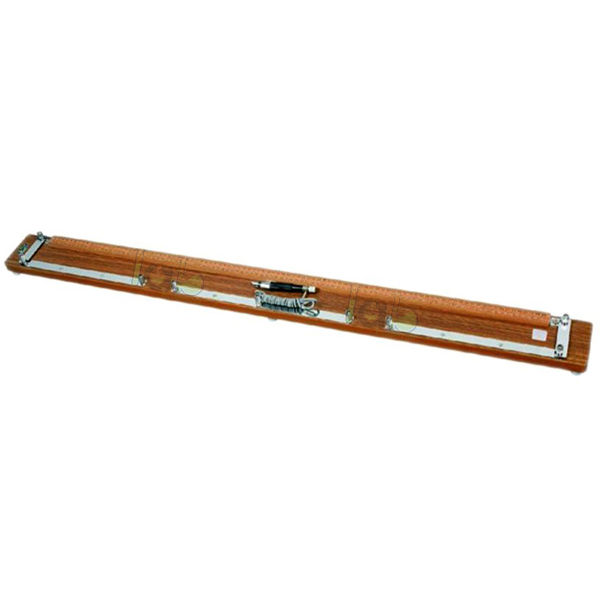

Meter Bridge or Wheatstone Bridge With Pencil Jockey
Product Code : EL-EAE-10289
Quick Answer: Meter Bridge or Wheatstone Bridge With Pencil Jockey is a four-gap bridge with 24 SWG constantan wire stretched along a wooden metre scale and clamped to brass end strips, mounted on a 3/4 inch thick laminated base. It comes with a pencil jockey and a connecting lead.
Last updated: October 2026
Key Features
24 SWG constantan bridge wire on a wooden metre scale
Wire clamped to brass end strips so end errors are negligible
End gaps closed by removable copper binding pieces
Heavy copper strip on a 3/4 inch thick laminated base
Nine heavy lock-type brass terminals
Supplied with pencil jockey and lead
Technical Specifications
Specification
Value
Bridge wire
24 SWG constantan
Scale
Wooden metre scale
Gaps
Four
End pieces
Removable copper binding pieces
Base
Laminated, 3/4 inch thick
Terminals
Nine, heavy brass, lock type
Accessories
Pencil jockey and lead for connections
About This Product
Built for Wheatstone bridge work in the Electrical And Electronics range, it has a constantan wire stretched along a wooden metre scale and securely clamped to brass end strips so that end errors stay negligible. The end gaps are closed by removable copper binding pieces held by the terminals, and nine lock-type brass terminals keep contact resistance to a minimum.
Frequently Asked Questions
Q1. Why is the wire clamped to brass end strips? The 24 SWG constantan wire is securely clamped to the brass end strips so that end errors are negligible.
Q2. What comes with the bridge? It is supplied complete with a pencil jockey and a lead for connections.
