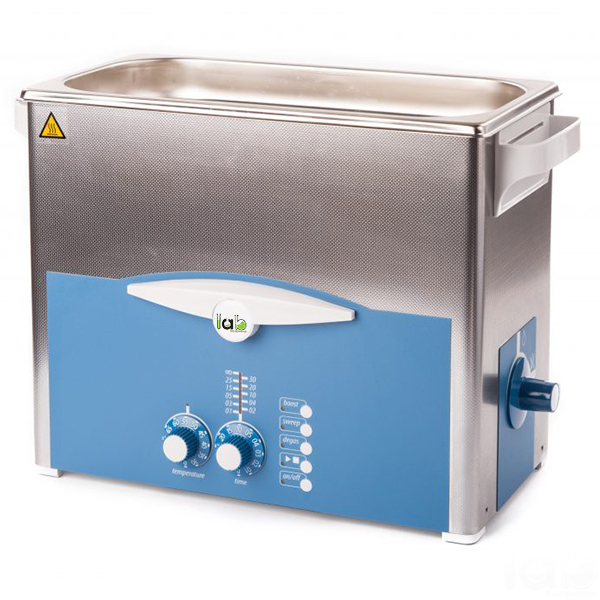

Heated Timed Ultrasonic Bath
Product Code : EL-WB-10806
Quick Answer: Heated Timed Ultrasonic Bath is a 1 litre ultrasonic bath with a stainless steel tank and housing, a 60 W heater for 30-80°C and 30 W effective ultrasonic power at 38 kHz, plus boost, degas and sweep functions.
Last updated: October 2026
Key Features
- 1 litre tank, 190 x 85 x 60 mm internal
- 30 W effective, 240 W peak ultrasonic power at 38 kHz
- 60 W heater, 30-80°C, analogue dial in 5°C increments
- Boost, degas and sweep functions
- Auto switch-off after 12 hours without key input
- 120 V or 230 V versions
Technical Specifications
| Specification | Value |
|---|---|
| Tank capacity | 1 litre |
| Temperature range | 30-80°C |
| Temperature control | Analogue dial pointer, 5°C increments |
| Timer | 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and 12 hours run time |
| Ultrasonic effective power | 30 W |
| Ultrasonic peak power/frequency | 240 W / 38 kHz |
| Heater power (220-240 V) | 60 W |
| Voltage | 120 V or 230 V |
| Drain tap | No |
| External dimensions (W x D x H) | 200 x 100 x 180 mm |
| Internal dimensions (W x D x H) | 190 x 85 x 60 mm |
About This Product
In a 1 litre tank measuring 190 x 85 x 60 mm inside, this bath combines a 60 W heater (30-80°C) with 30 W of effective ultrasonic power at 38 kHz and boost, degas and sweep functions. Time settings run from 1 to 30 minutes, and an auto switch-off after 12 hours without key presses prevents unintended operation. No drain tap is fitted on this Water Bath model, which is offered for 120 V or 230 V supplies.
Frequently Asked Questions
Q1. What capacity is the tank?
1 litre, with internal dimensions of 190 x 85 x 60 mm.
Q2. Does it have a drain tap?
No, this model has no drain tap.
To order the Heated Timed Ultrasonic Bath or ask a question about it, send an enquiry to Lab Equipments Ambala.
