Quick Answer: Moisture Analyser determines the moisture content of raw materials and finished samples of food, cosmetics and ceramics, drying them under a halogen-infrared lamp. It weighs up to 160 g at 0.001 g resolution and reads moisture to 0.01%.
Last updated: October 2026
Key Features
Weighing capacity 160 g with 0.001 g resolution
Halogen-infrared lamp heat source with PT-100 temperature sensor
Moisture range 0.00% to 100%, readability 0.01%
LCD with backlight
RS232 interface
110 mm pan diameter
Technical Specifications
Specification
Value
Capacity
160 g
Resolution
0.001 g
Pan diameter
110 mm
Heat source
Halogen infrared lamp
Temperature sensor
PT-100
Temperature range
50°C - 160°C
Temperature steps
1°C
Temperature compensation (2 points)
80°C - 150°C
Temperature slew rate
30°C/min
Moisture range
0.00% - 100%
Moisture readability
0.01%
Dry residual range
100.00% - 0.00%
Moisture precision (sample weight 2 g - 10 g)
0.05% - 0.5%
Linearity
±0.003 g
Interface
RS232
Operating temperature range
5°C - 35°C
About This Product

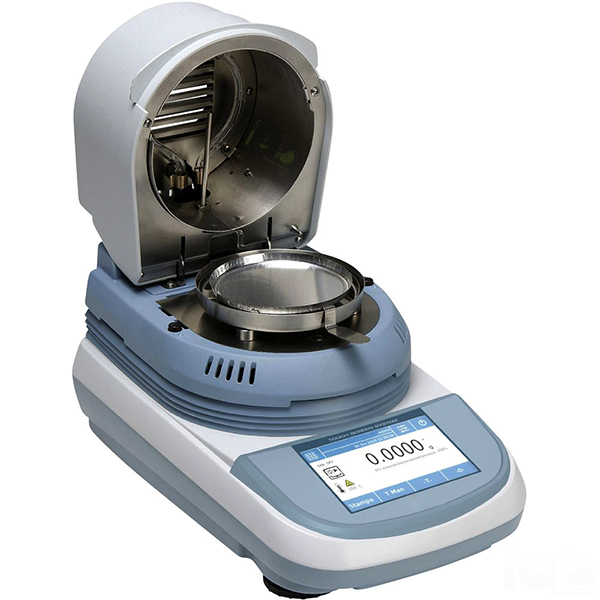

Samples of food, cosmetics and ceramics are heated on a 110 mm pan by a halogen-infrared lamp, while the integrated 160 g weighing system reports moisture and dry residue to 0.01%. Heating is set in 1°C steps under a PT-100 sensor, with a slew rate of 30°C/min. Within Laboratory Instruments it covers moisture checks on raw materials and finished samples, and it is also used in the agriculture and construction industries.
Frequently Asked Questions
Q1. What materials can the Moisture Analyser test? Raw materials and finished samples of food, cosmetics and ceramics; it is also used in the agriculture and construction industries.
Q2. What is the weighing capacity and resolution? Capacity is 160 g with a resolution of 0.001 g and linearity of ±0.003 g.
Q3. Does it have a data interface? Yes, it has an RS232 interface.
