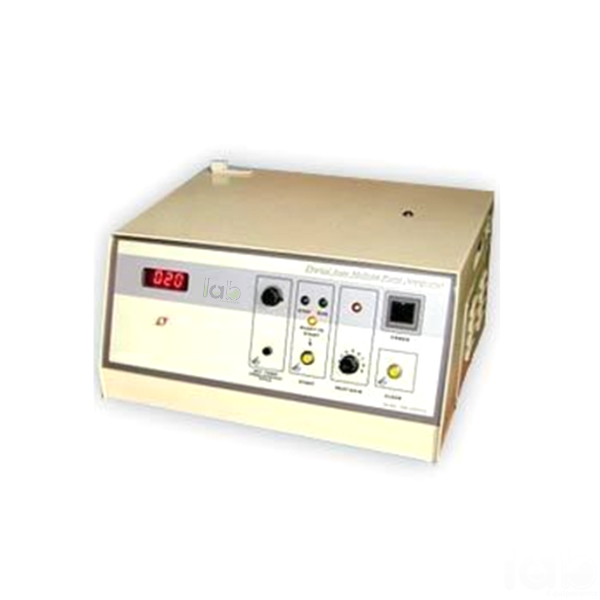

Quick Answer: Automatic Melting Point Apparatus measures melting points from 40°C to 350°C with 1°C readability, showing the result on a 3½ digit LED display. It needs no silicon oil or other heating media and cuts off the furnace automatically.
Last updated: October 2026
Key Features
Range 40°C to 350°C, readability 1°C
Fully automatic operation
Automatic furnace cut-off with audio and visual indication
No silicon oil or heating media required
Supplied with 100 capillary tubes and 1 cleaning tool
Technical Specifications
Specification
Value
Range
40°C to 350°C
Readability
1°C
Accuracy
1%
Operation
Fully automatic
Display
Digital 3½ digit, bright LED
Power
230 V ± 10%, 50 Hz
Accessories
Capillary tube 100 nos., cleaning tool 1 no.
Dimensions
L 405 x B 360 x H 235 mm (approx.)
Weight
5 kg (approx.)
About This Product
Capillary samples are heated in a furnace that needs no silicon oil or other heating media, and the melting point is shown on the 3½ digit front-panel display. Operation is fully automatic, and the furnace cuts off automatically with audio and visual indication. Covering 40°C to 350°C at 1°C readability, this Laboratory Instruments model comes with 100 capillary tubes and a cleaning tool.
Frequently Asked Questions
Q1. Does it need silicon oil? No. No silicon oil or other heating media is required.
Q2. What accessories come with it? 100 capillary tubes and 1 cleaning tool.
Q3. What is its measuring range? 40°C to 350°C, with 1°C readability and 1% accuracy.
