Quick Answer: Multi Position Heating Mantle heats between 3 and 6 round bottom flasks at once, each position regulated by its own built-in temperature controller, with heating elements operating up to 350°C.
Last updated: October 2026
Key Features
Heats 3 to 6 round bottom flasks simultaneously
Individual built-in temperature controller for each mantle
Maximum heating element operating temperature 350°C
Vented housing and air flow keep the unit cool to touch
Support rods and clamps included
Technical Specifications
Specification
Value
Positions
3 to 6 round bottom flasks
Control
Individual built-in temperature controller per mantle
Max. element temperature
350°C
Ratings (W)
180, 360, 450, 600, 900, 1200, 1800
Flask capacity (ml)
100, 250, 500, 1000
Included
Support rods and clamps

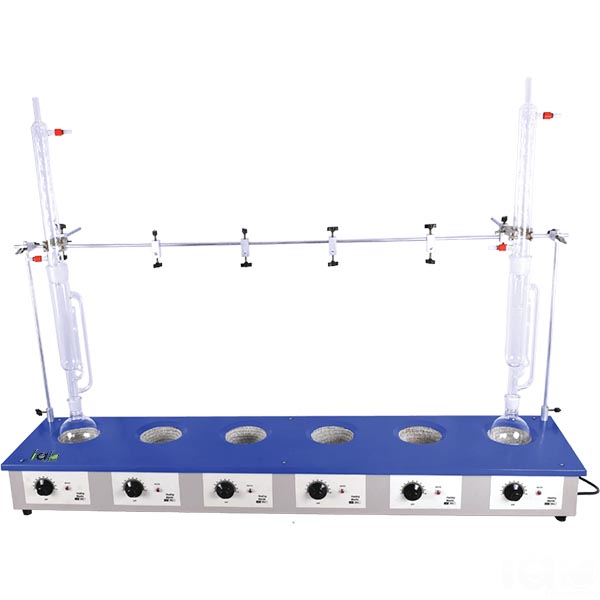

About This Product
Each Heating Mantle position has its own built-in temperature controller, so 3 to 6 round bottom flasks can be heated side by side for distillation, extraction or reflux work. The vented housing and air flow keep the outside cool to touch, and support rods and clamps are included to hold the flasks.
Frequently Asked Questions
Q1. How many flasks can the Multi Position Heating Mantle heat? Between 3 and 6 round bottom flasks simultaneously, each regulated by its own built-in temperature controller.
Q2. What is it typically used for? Distillation, extraction and reflux procedures wherever several flasks must be heated.
Q3. Are support rods and clamps included? Yes, the units include support rods and clamps.
