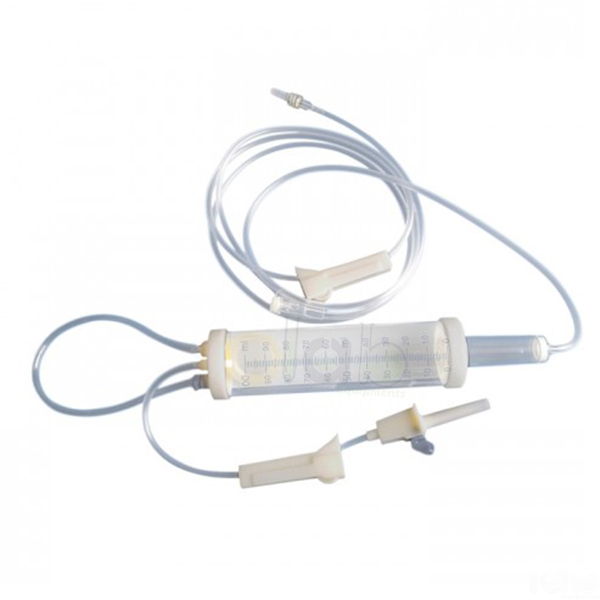

Infusion Giving Set, W/Burette, Sterile
Product Code : EL-I-10882
Quick Answer: Infusion Giving Set, W/Burette, Sterile is a single-use IV giving set with a graduated chamber (burette) of approximately 100-150 ml, marked every ml, for precise-volume, slow administration of infusions or injectable medicine.
Last updated: October 2026
Key Features
- Graduated chamber (burette): transparent polystyrene (PS), approximately 100-150 ml, graduations every ml
- Automatic shut off valve stops the infusion once the pre-set volume has flowed, preventing air entering the drop-counting chamber and tube
- Transparent, kink-resistant PVC tube, approximately 150 cm; overall set approximately 170 cm; internal / external diameter approximately 3 mm / 4 mm
- Calibrated 60 drops/ml, with a 15µ polyamide filter
- ABS flow regulator, injection port (ABS with synthetic rubber), terminal stopper and air inlet with bacteriological filter
- Luer lock connector; sterile, single use
Technical Specifications
| Component | Specification |
|---|---|
| Tube | PVC, transparent, resistant to kinking; approximately 150 cm; internal / external diameter approximately 3 mm / 4 mm |
| Overall length | Approximately 170 cm |
| Perforator | Plastic (polyacetate); tapering tube on a base; with protecting cap |
| Air inlet | ABS, incorporated into the perforator, with air filter (bacteriological filter) |
| Graduated chamber (burette) | PS, transparent, approximately 100-150 ml, graduations every ml; connected to the perforator by a tube of approximately 15 cm |
| Drop calibration | 60 drops/ml, with 15µ polyamide filter |
| Flow regulator | ABS |
| Injection port | ABS + synthetic rubber |
| Terminal connection (stopper) | ABS |
| Security gauge | Automatic shut off valve |
| Connector | Luer lock |
| Use | Sterile, single use |
About This Product
The perforator connects the set to the infusion bottle or bag, the graduated burette measures the volume, and an automatic shut off valve stops the infusion once the pre-set volume has flowed, so that air does not enter the drop-counting chamber or tube. Injectable medicines can be introduced into the infusion flow in precise volumes through the injection port. In the Injection category, this set is the one fitted with a burette and calibrated at 60 drops/ml.
Frequently Asked Questions
Q1. What is the burette capacity?
Approximately 100-150 ml, in transparent polystyrene with graduations every ml.
Q2. What stops air entering the line when the burette empties?
An automatic shut off valve stops the infusion as soon as the pre-set volume has flowed, preventing air entering the drop-counting chamber and/or the tube.
Q3. How many drops per ml is the set calibrated to?
60 drops/ml, with a 15µ polyamide filter.
Lab Equipments Ambala supplies institutions and distributors in Slovenia, Suriname, Brunei and New Zealand, as part of its export work to 80+ countries.
Contact Lab Equipments Ambala for a quotation on the Infusion Giving Set, W/Burette, Sterile.
