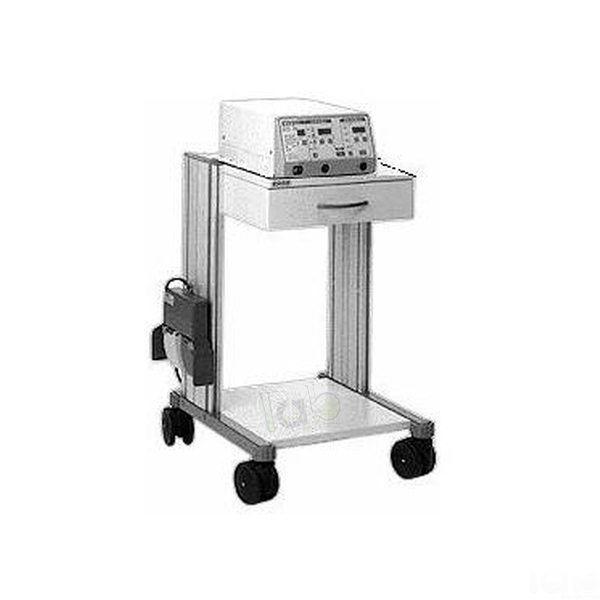

Electrosurgical Unit w/access
Product Code : EL-HE-10949
Quick Answer: Electrosurgical Unit w/access is a microprocessor controlled generator with mono-polar and bi-polar output for major and minor general surgery procedures. It is supplied on a cart with a double function foot switch and runs on 220 V / 50 Hz.
Last updated: October 2026
Key Features
- Mono-polar CUT modes: pure, blend and hemostasis
- Mono-polar COAG modes: contact/standard, soft, forced and spray, plus bi-polar COAG
- Output frequency 330 – 430 kHz
- Return electrode safety system stops the generator if patient connection is bad or lost
- Double function foot switch (CUT yellow, COAG blue) and hand switch controls
- Cart on 4 anti-static swivel castors, 2 with brakes, with drawer and foot switch storage
Technical Specifications
| Specification | Value |
|---|---|
| CUT mono-polar | Up to 300 W at 500 Ohm / 200 W at 300 Ohm (depending on model) |
| COAG mono-polar | Up to 120 W / 200 W (depending on model) |
| COAG bi-polar | Up to 50 W / 120 W (depending on model) |
| Output frequency | 330 – 430 kHz |
| Generator | Microprocessor controlled |
| Controls | Double function foot switch; hand switch (at least mono-polar) |
| Power requirements | 220 V / 50 Hz |
| Power consumption | 500 – 700 W |
| Cart | 4 anti-static swivel castors, 2 with brakes, drawer, foot switch storage |
About This Product
The surgeon selects a CUT or COAG mode, sets the power or picks a pre-set program or user-defined procedure, and works the unit from the foot switch or hand switch. For mono-polar work, the return electrode safety system monitors the patient connection and stops the generator if that connection is bad or lost, and the unit runs an automatic self-test. Commercial cables and electrodes are compatible with this Hospital Equipment generator, whose front panel shows working parameters, settings, alarms and errors.
Frequently Asked Questions
Q1. Does the electrosurgical unit work in bi-polar mode?
Yes. It has mono-polar and bi-polar output, with bi-polar COAG up to 50 W or 120 W depending on the model.
Q2. What safety features does it have?
A return electrode safety system for mono-polar use monitors the patient connection automatically and stops the generator if the connection is bad or lost. The unit also runs an automatic self-test.
Q3. Can standard electrodes be used?
It is compatible with commercial cables and electrodes.
To order the Electrosurgical Unit w/access or ask a question about it, send an enquiry to Lab Equipments Ambala.
