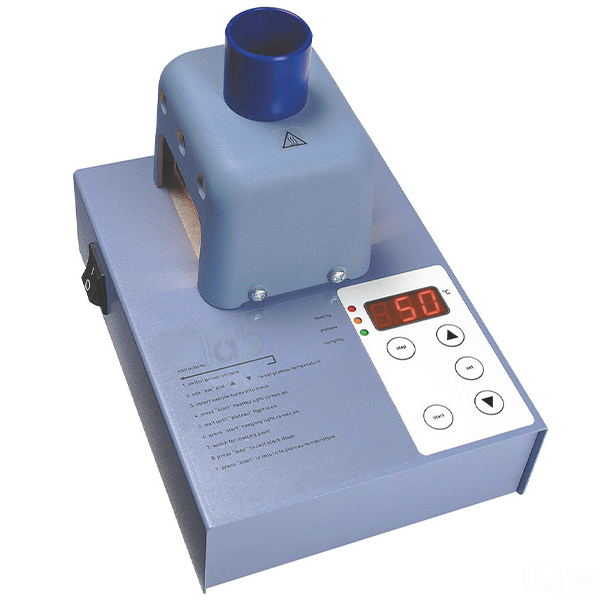

Quick Answer: Digital Melting Point Apparatus measures melting points from ambient to 300°C on a three-digit LED display, testing two samples at once under built-in illumination and a magnifying viewing lens.
Last updated: October 2026
Key Features
Temperature range ambient to 300°C
Three-digit LED display
Two samples tested simultaneously
Built-in illumination and magnifying viewing lens
Heating at 20°C/min to plateau and 2°C/min to melt
For 220/240 V
Technical Specifications
Specification
Value
Temperature range
Ambient to 300°C
Range rates
20°C/min to plateau, 2°C/min to melt
Display
Three digit LED
Samples
Two at a time
Power
220/240 V
Dimensions (L x W x H)
160 x 220 x 170 mm
About This Product
The apparatus heats at 20°C/min up to a plateau and then at 2°C/min through the melt, so the moment two samples melt can be watched closely through the illuminated magnifying lens. Designed with safety and ease of operation in mind for education, this Chemistry Lab Equipment unit reads out on a three-digit LED display.
Frequently Asked Questions
Q1. How many samples can be tested at once? Two samples can be tested simultaneously.
Q2. What is the temperature range? Ambient to 300°C, shown on a three-digit LED display.
