Meter Bridge or Wheatstone Bridge With Pencil Jockey
Product Code : EL-EAE-10289

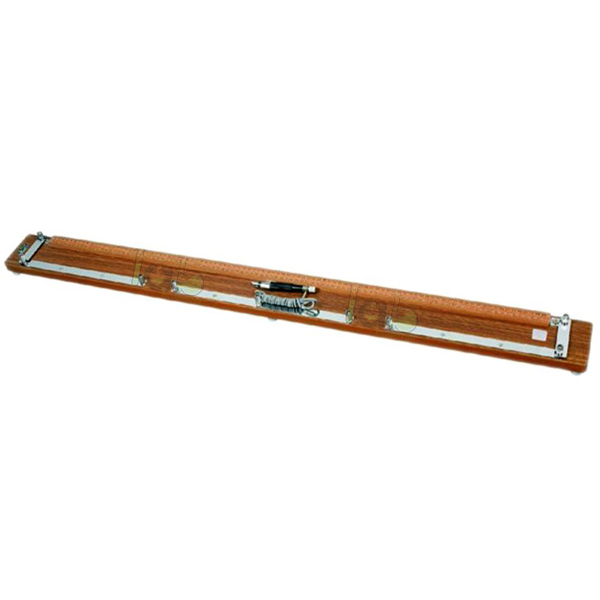

Quick Answer: Meter Bridge or Wheatstone Bridge With Pencil Jockey is a four-gap bridge with 24 SWG constantan wire stretched along a wooden metre scale and clamped to brass end strips, mounted on a 3/4 inch thick laminated base. It comes with a pencil jockey and a connecting lead.
Last updated: October 2026
Key Features
- 24 SWG constantan bridge wire on a wooden metre scale
- Wire clamped to brass end strips so end errors are negligible
- End gaps closed by removable copper binding pieces
- Heavy copper strip on a 3/4 inch thick laminated base
- Nine heavy lock-type brass terminals
- Supplied with pencil jockey and lead
Technical Specifications
| Specification | Value |
|---|---|
| Bridge wire | 24 SWG constantan |
| Scale | Wooden metre scale |
| Gaps | Four |
| End pieces | Removable copper binding pieces |
| Base | Laminated, 3/4 inch thick |
| Terminals | Nine, heavy brass, lock type |
| Accessories | Pencil jockey and lead for connections |
About This Product
Built for Wheatstone bridge work in the Electrical And Electronics range, it has a constantan wire stretched along a wooden metre scale and securely clamped to brass end strips so that end errors stay negligible. The end gaps are closed by removable copper binding pieces held by the terminals, and nine lock-type brass terminals keep contact resistance to a minimum.
Frequently Asked Questions
Q1. Why is the wire clamped to brass end strips?
The 24 SWG constantan wire is securely clamped to the brass end strips so that end errors are negligible.
Q2. What comes with the bridge?
It is supplied complete with a pencil jockey and a lead for connections.
For a quotation on the Meter Bridge or Wheatstone Bridge With Pencil Jockey, contact Lab Equipments Ambala.
