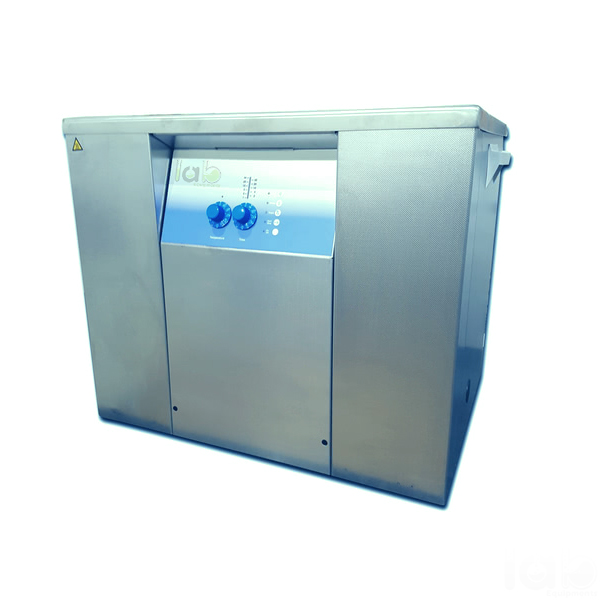

Quick Answer: Heated Timed Ultrasonic Bath, 90 Litre has a stainless steel tank and housing, 800 W effective ultrasonic power at 38 kHz, a 2000 W heater for 30-80°C, and boost, degas and sweep functions.
Last updated: October 2026
Key Features
90 litre stainless steel tank and housing
Ultrasonic effective power 800 W; peak 3200 W at 38 kHz
2000 W heater, 30-80°C, analogue dial in 5°C increments
Ultrasonic boost, degas and sweep functions
Timer settings from 1 to 30 minutes; auto switch-off after 12 hours without key input
Drain tap fitted
Technical Specifications
Specification
Value
Tank capacity
90 litres
Temperature range
30-80°C
Temperature control
Analogue dial pointer, 5°C increments
Timer
1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and 12 hours run time
Ultrasonic effective power
800 W
Ultrasonic peak power/frequency
3200 W / 38 kHz
Heater power (220-240 V)
2000 W
Voltage
230 V, 50-60 Hz
Drain tap
Yes
External dimensions (W x D x H)
715 x 570 x 467 mm
Internal dimensions (W x D x H)
600 x 500 x 300 mm
About This Product
Built for demanding applications and continuous operation, this industrial-strength bath combines heating over 30-80°C with ultrasonic boost, degas and sweep functions in a 90 litre stainless steel tank. The heater is set on an analogue dial in 5°C increments, time settings run from 1 to 30 minutes, and the bath switches itself off after 12 hours if no keys have been pressed. Within Water Bath, this model has 800 W of effective ultrasonic power at 38 kHz and a drain tap for emptying the 600 x 500 x 300 mm tank.
Frequently Asked Questions
Q1. What ultrasonic frequency does it use? 38 kHz, with 800 W effective and 3200 W peak ultrasonic power.
Q2. Can it run continuously? It is designed for continuous operation, with an auto switch-off after 12 hours if no keys have been activated.
Q3. How is the bath emptied? It has a drain tap.
