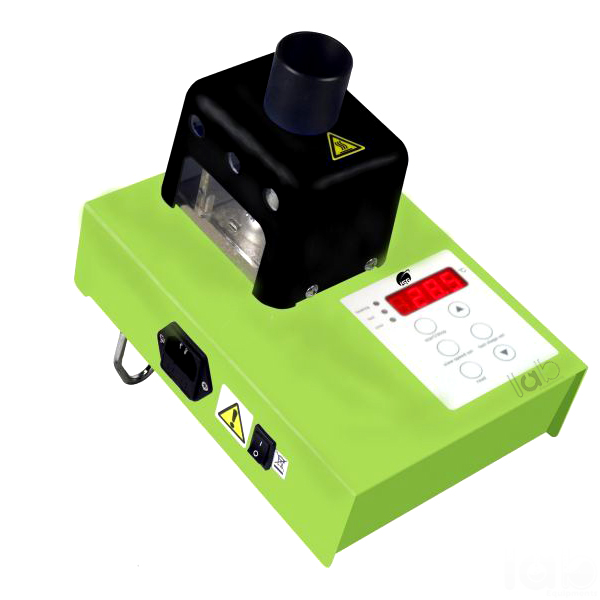

Quick Answer: Melting Point Apparatus, Digital measures three samples at once from ambient to 300°C, using thermistor control with a display resolution of 0.1°C. An internal LED light and magnified lens give a clear view of the samples.
Last updated: October 2026
Key Features
Measures 3 samples simultaneously
Ambient to 300°C range, 0.1°C display resolution
Two heating speeds: fast stage fixed at 20°C/min, slow ramp adjustable between 1 and 10
Internal LED light, magnified lens and tilting rear feet for viewing
Four digit LED display with readout hold
Technical Specifications
Specification
Value
Temperature range
Ambient to 300°C
Temperature accuracy
± 1.0°C at 20°C, ± 2.5°C at 300°C
Display
Four digit LED
Display resolution
0.1°C
Fast stage ramp rate
20°C/min, fixed
Slow ramp rates
Adjustable between 1 and 10
Readout hold
Yes
Number of samples
3
Dimensions (W x D x H)
160 x 220 x 170 mm
Net weight
1.8 kg
Electrical supply
230 V, 50 Hz, 75 W
About This Product
Three samples are heated and viewed together through a magnified lens lit by an internal LED, with tilting rear feet angling the unit for a clearer view. Two heating speeds, a fixed 20°C/min fast stage and a slow ramp adjustable from 1 to 10, shorten each measurement, and the readout hold keeps the result on the four digit display. Thermistor control gives this Laboratory Instruments apparatus a 0.1°C display resolution from ambient to 300°C.
Frequently Asked Questions
Q1. How many samples can it measure at once? Three samples simultaneously.
Q2. How accurate is the temperature reading? ± 1.0°C at 20°C and ± 2.5°C at 300°C, with a display resolution of 0.1°C.
Q3. What heating rates are available? A fast stage fixed at 20°C/min and slow ramp rates adjustable between 1 and 10.
