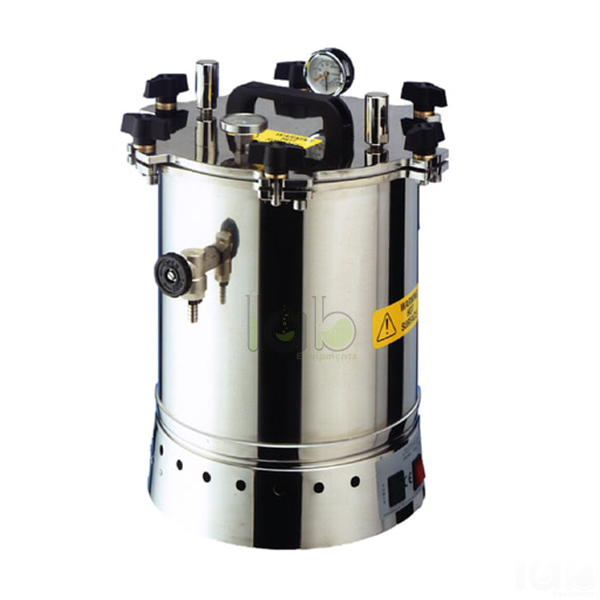

Autoclave, Stainless Steel, 15 Litre
Product Code : EL-A-10647
Quick Answer: Autoclave, Stainless Steel, 15 Litre is a 15-litre steriliser in stainless steel 316 with a polished exterior, a removable lid held by six wing nuts and six lugs, and an internal electric element with electronic thermostatic control, working at 121 ºC.
Last updated: October 2026
Key Features
- Stainless steel 316 vessel with polished exterior for easier cleaning
- Removable lid for full-width access, locked by six wing nuts and six lid locking lugs
- Lid cannot be opened while the vessel is under pressure
- Inner liner provided for items to be sterilised
- Condensing vacuum after the sterilising period aids drying
- Internal electric element with electronic thermostatic control, 230 V, 2.0 kW
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 15 litres |
| Design pressure | 1.3 bar (18 psi) |
| Design temperature | 0–125 ºC |
| Internal dimensions | (D) 280 mm x (H) 245 mm |
| Material | Stainless steel 316 |
| Heat source | Internal electric element, electronic thermostatic control (230 V, 2.0 kW) |
| Maximum working temperature | 121 ºC |
| Standard working temperature | 121 ºC |
| H T pressure | 2.0 bar (30 psi) |
| S W pressure | 1.3 bar (18 psi) |
| Overall dimensions | 370 x 390 x 485 mm |
| Net weight | 19 kg |
About This Product
Items to be sterilised go into the inner liner, and the lid locking device stops the lid being opened while the vessel is under pressure; after the sterilising period a condensing vacuum helps the load dry. Instruments, glassware, media and waste can all be processed, and this Autoclaves model is particularly suited to destructive sterilisation.
Frequently Asked Questions
Q1. What are the working temperature and pressure of the 15 litre autoclave?
Standard and maximum working temperature are both 121 ºC. Design and S W pressure are 1.3 bar (18 psi), and the H T pressure is 2.0 bar (30 psi).
Q2. How is the lid secured?
Six wing nuts and six lid locking lugs hold the removable lid, so it cannot be opened while the vessel is under pressure.
Q3. How is the autoclave heated?
By an internal electric element with electronic thermostatic control, rated 230 V, 2.0 kW.
To order the Autoclave, Stainless Steel, 15 Litre or ask a question about it, send an enquiry to Lab Equipments Ambala.
