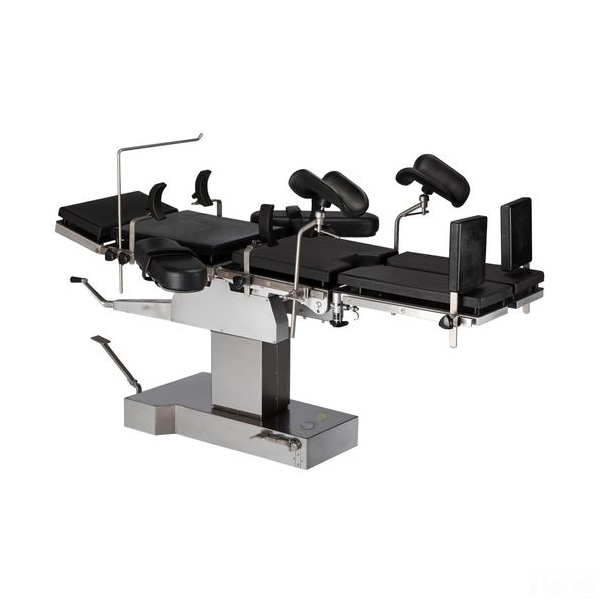

Operating Theatre Table With Accessories
Product Code : EL-HF-10935
Quick Answer: Operating Theatre Table With Accessories is a manually operated general purpose operating table with 4 areas and 5 sections, a radiolucent tabletop with x-ray cassette channels and foot-pedal hydraulic height adjustment. It carries a minimum of 150 kg.
Last updated: October 2026
Key Features
- Manual gear, lever and crank mechanisms, no gas springs
- Radiolucent epoxy resin tabletop with standard size x-ray cassette channels
- Height adjustable by foot pedal via hydraulic lever system, 63-77 to 90-110 cm
- Trendelenburg and reverse Trendelenburg +/- 25 degree; lateral tilt +/- 20 degree
- Removable head area (+20 to -90 degree) and two-section removable leg area
- Stainless steel base on 4 castors with central brake
Technical Specifications
| Specification | Value |
|---|---|
| Configuration | 4 areas, 5 sections |
| Length, all areas extended | 220-224 (L), including leg section straight |
| Width | 49-52 (surface); 55-57 (with side rail) |
| Height | 75-79 floor to frame; 79-96 floor to surface without mattress |
| Height adjustment | 63-77 to 90-110 cm |
| Trendelenburg / reverse | +/- 25 degree |
| Lateral tilt | +/- 20 degree, both sides |
| Backrest | 5 to +90 degree |
| Head area | +20 to -90 degree, removable |
| Mattress | Welded seams rubber, 4.5-6 cm, detachable |
| Base | Stainless steel, 4 castors, earth connection |
| Accessory rail | Austenitic stainless steel 18/10 |
| Carrying capacity | Minimum 150 kg |
About This Product
The surgical team sets the back, pelvic and leg areas with a manual crank, raises or lowers the whole table with the foot pedal and tilts it for Trendelenburg or lateral positions; there are no gas springs. The central brake lowers the table onto 4 height adjustable feet for stability, and the base has an earth connection. Accessories clamp to standard stainless steel medical rails on both sides of this Hospital Furniture item, and each section's mattress detaches for cleaning.
Frequently Asked Questions
Q1. Does the operating table use gas springs?
No. Gear, lever and crank mechanisms are all manually operated, and height is adjusted with a foot pedal via a hydraulic lever system.
Q2. Can x-rays be taken on the table?
The tabletop is radiolucent epoxy resin with integrated standard size x-ray cassette channels.
Q3. What tilt does the table allow?
Trendelenburg and reverse Trendelenburg of +/- 25 degree, and lateral tilting of +/- 20 degree to both sides.
Lab Equipments Ambala packs and ships export orders for buyers in the Comoros, Ghana, Uruguay and Tanzania.
For a quotation on the Operating Theatre Table With Accessories, contact Lab Equipments Ambala.
