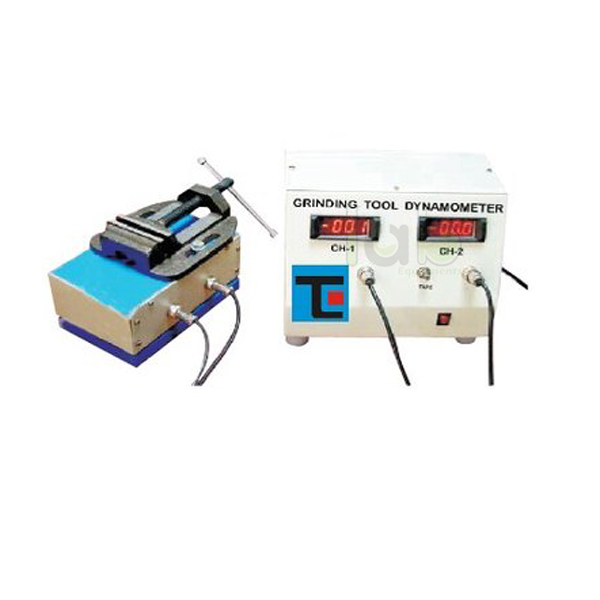

Quick Answer: Grinder Tool Dynamometers measure the two forces resolved during a grinding operation, using two octagonal rings with strain gauges and a two channel digital force indicator that reads both forces simultaneously over a range of 0 to 200 kg.
Last updated: October 2026
Key Features
Mechanical sensing unit with two octagonal rings and strain gauges
Two channel digital force indicator with balancing potentiometers and polycarbonate front plate
Force range 0 to 200 kg in coordinate direction
Mechanical unit overall size 300 x 300 mm
Rigid, compact construction
Technical Specifications
Specification
Value
Sensing unit
Two octagonal rings with strain gauges
Force indicator
Two channel digital, balancing potentiometers, polycarbonate front plate
Force range
0 to 200 kg in coordinate direction
Mechanical unit size
300 x 300 mm
Machine required
Surface grinding machine
Supply
230 V, single phase, 50 Hz, stabilised
About This Product
Designed for demonstration to students of tool design, this THEORY OF MACHINE LAB set-up is mounted on a surface grinding machine to study the forces resolved during grinding. Strain gauges on its octagonal rings act as the sensors, and changing depth of cut, material, speed and feed shows how each affects the two forces.
Frequently Asked Questions
Q1. How many forces does it measure? Two. The two channel digital force indicator measures both grinding forces simultaneously, over a range of 0 to 200 kg.
Q2. What grinding machine is required? A surface grinding machine, with a 230 V, single phase, 50 Hz stabilised power supply.
