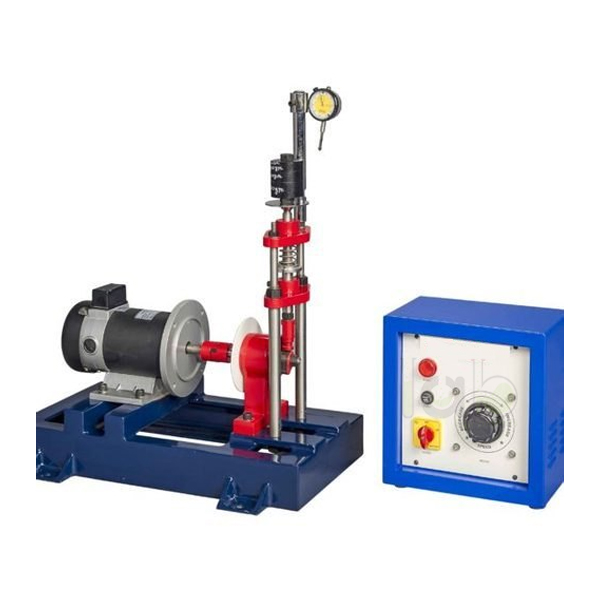

Cam Analysis Apparatus
Product Code : EL-TOML-11023
Quick Answer: Cam Analysis Apparatus studies cam profiles and cam-follower performance with eccentric, tangent and circular arc cams and mushroom, flat faced and roller followers, driven by a variable speed motor, with a dial gauge for follower displacement.
Last updated: October 2026
Key Features
- Cams: eccentric, tangent and circular arc type, one each
- Followers: mushroom, flat faced and roller type, one each
- Cams and followers hardened to reduce surface wear
- Variable speed motor coupled to the camshaft, with Variac
- Dial gauge to note follower displacement
- Shaft on ball bearings; cams and followers change easily
Technical Specifications
| Specification | Value |
|---|---|
| Cams | eccentric, tangent, circular arc (one each) |
| Followers | mushroom, flat faced, roller (one each) |
| Drive | variable speed motor with Variac |
| Measurement | dial gauge for follower displacement |
| Supply | 230 V, A.C. stabilized, with earthing connection |
| Bench area | 0.5m x 0.5m x 0.5m height |
About This Product
The dial gauge lets students plot follower displacement against cam position, and running the system at different speeds reveals the jump speed. Within the THEORY OF MACHINE LAB, the apparatus also shows how weight and spring force affect jump speed, and a stroboscope, not supplied, can make the jump visible.
Frequently Asked Questions
Q1. Which cams and followers are included?
Eccentric, tangent and circular arc cams, and mushroom, flat faced and roller followers, one of each.
Q2. How is the jump speed found?
By operating the system at different speeds; a tachometer to measure it can be supplied extra, and a stroboscope (not supplied) helps visualise the jump.
To order the Cam Analysis Apparatus or ask a question about it, send an enquiry to Lab Equipments Ambala.
