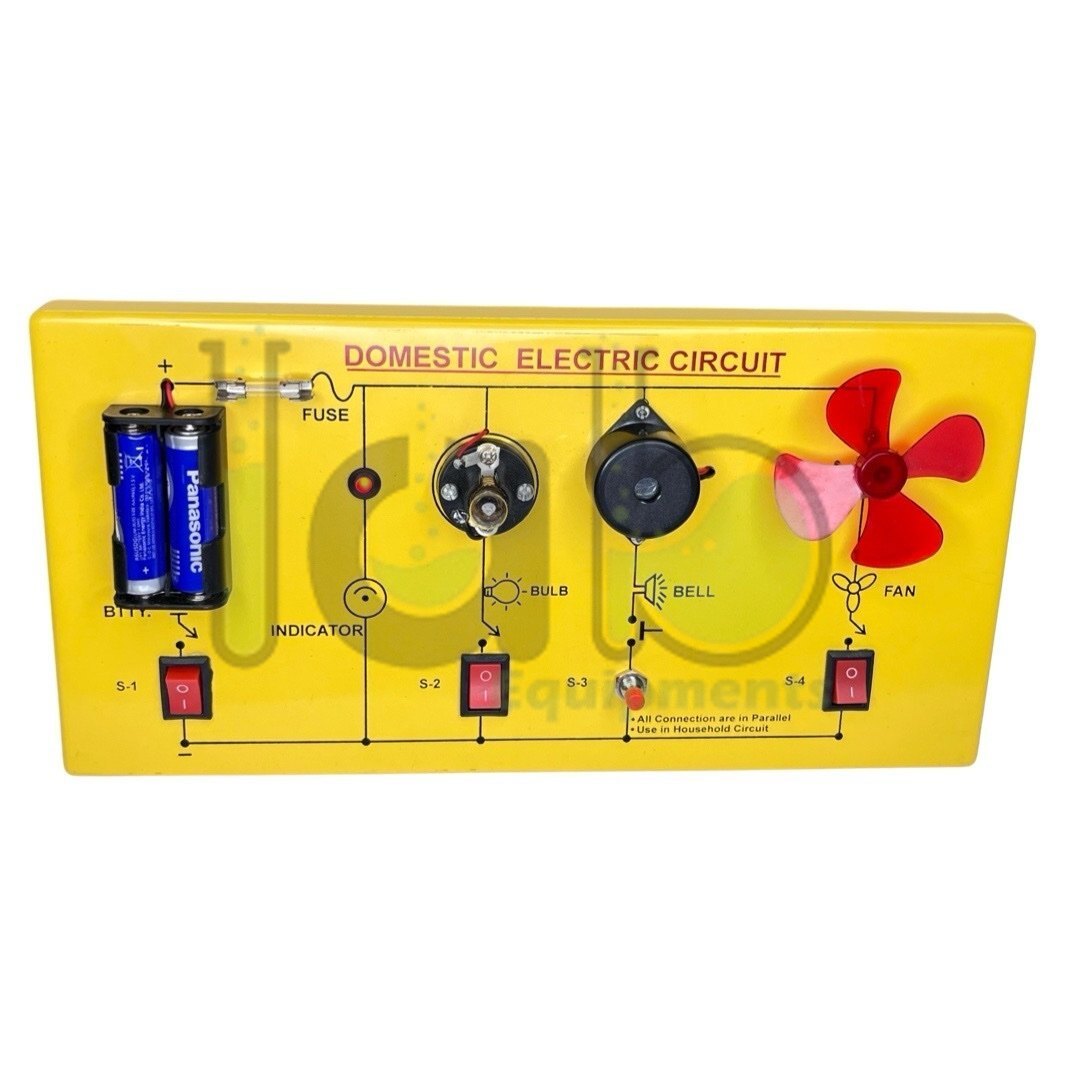

Quick Answer: Domestic Circuit Apparatus models household wiring with switches, lamp holders, sockets and connection terminals laid out on a support base. Students use it to study live and neutral connections, switch control of lamps and the part safety components play.
Last updated: October 2026
Key Features
Switches, lamp holders and sockets on a support base
Connection terminals with a set wiring layout
Shows live and neutral connections and the plug and socket arrangement
Used to explain how safety components protect a household circuit
Needs a suitable electrical input under supervision
Technical Specifications
Specification
Value
Construction
Switches, lamp holders, sockets, connection terminals, wiring layout, support base
Power
Suitable electrical input
Learning level
Secondary, senior secondary, undergraduate
About This Product
Once every switch, socket, lamp and terminal is connected, a suitable supply is applied under supervision and the switches are operated to show how the connected lamp or output device responds. It is a Physics Miscellaneous Products item for teaching domestic wiring, appliance control and basic electrical safety.
Frequently Asked Questions
Q1. What can students learn from the Domestic Circuit Apparatus? Domestic wiring, live and neutral connection, switch control, lamp operation, socket arrangement and basic electrical safety.
